RoHS 0.5mm Cat5E U UTP Outside Plant Cable Support OEM ODM

Product Description

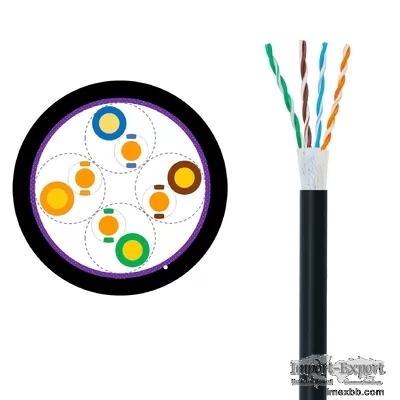

Cat.5E U-UTP Outside Plant Cable



Quick Detail:

100MHz transmission frequency
24AWG high-quality conductor
Excellent physical performance
100m Channel test pass
90m Permanent Link test pass
ISO/IEC 11801-2008 TIA/EIA-568B.2-2001
CE, RoHS, CPR, UL compliant
3 Year Warranty
OEM or ODM available


Description:



The conductor adopts 24AWG high-quality oxygen-free copper wire (99.99%).
Suitable for Fast Ethernet applications, the highest transmission frequency can
reach 100MHz. The Cable can pass 100m Channel test or 90m Permanent Link test.
Fully meet and superior to the standards of ISO/IEC 11801-2008 TIA/EIA-568B.2-
2001, in line with CPR UL. Accept customization of OEM or ODM



Specifications:



Test Standard TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019
Construction
Conductor Material Solid Bare Copper












RoHS 0.5mm Cat5E U UTP Outside Plant Cable Support OEM ODM 0

Diameter(mm) 0.50
Insulation Material HDPE
Diameter(mm) 0.89~0.90
Core color 1 white-blue/blue 2 white-orange/orange
3 white-green/green 4 white-brown/brown
Polyester tap 20×0.035mm
Aluminum tape 22×0.25mm
Sheath Material LLDPE
Thickness 1.3±0.1mm
Diameter 8.6±0.2mm
Color Black
Surface printing Letter high 3.0 ± 0.5mm
Color White
Print error & Space ≤± 0.5% , 1m
Package Reel in box
Box Dimensions(mm) 510*510*240
Package Length 305m
Electrical Properties
Conductor Resistance (20℃) ≤9.5 Ω/ 100m
Electrical Resistance Unbalance ( 20℃) ≤2.5%
Insulation Resistance >5000 MΩ·km
Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) ≤330pF/100m
Mutual capacitance of a pair ≤5.6nF/100m
Transmission Properties(Fluke Testing)
Feq

MHZ

Zin IL RL NEXT PS NEXT ELFEXT PS ELFEXT
Ω dB/100m dB dB/100m dB/100m dB/100m dB/100m
1.0 100±15 ≤2.04 ≥20.00 ≥65.30 ≥62.30 ≥64.00 ≥61.00
4.0 ≤4.05 ≥23.01 ≥56.27 ≥53.27 ≥51.96 ≥48.96
8.0 ≤5.77 ≥24.52 ≥51.75 ≥48.75 ≥45.94 ≥42.94
10.0 ≤6.47 ≥25.00 ≥50.30 ≥47.30 ≥44.00 ≥41.00
16.0 ≤8.25 ≥25.00 ≥47.24 ≥44.24 ≥39.92 ≥36.92
25.0 ≤10.42 ≥24.32 ≥44.33 ≥41.33 ≥36.04 ≥33.04
31.2 ≤11.71 ≥23.65 ≥42.89 ≥39.89 ≥34.12 ≥31.12
62.5 ≤16.99 ≥21.54 ≥38.36 ≥35.36 ≥28.08 ≥25.08
100 ≤21.98 ≥20.11 ≥35.30 ≥32.30 ≥24.00 ≥21.00
Test Standard TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019
Construction
Conductor Material Solid Bare Copper


RoHS 0.5mm Cat5E U UTP Outside Plant Cable Support OEM ODM 1











Diameter(mm) 0.50
Insulation Material HDPE
Diameter(mm) 0.89~0.90
Core color 1 white-blue/blue 2 white-orange/orange
3 white-green/green 4 white-brown/brown
Rip cord Tex111
Sheath Material PVC/LSZH
Thickness 0.6±0.1mm
Diameter 5.2±0.2mm
Color According to the requires
Surface printing Letter high 3.0 ± 0.5mm
Color Black&White
Print error & Space ≤± 0.5% , 1m
Package Paper box
Box Dimensions(mm) 360*360*230
Package Length 305m
Electrical Properties
Conductor Resistance (20℃) ≤9.5 Ω/ 100m
Electrical Resistance Unbalance ( 20℃) ≤2.5%
Insulation Resistance >5000 MΩ·km
Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) ≤330pF/100m
Mutual capacitance of a pair ≤5.6nF/100m
Transmission Properties(Fluke Testing)
Feq

MHZ

Zin IL RL NEXT PS NEXT ELFEXT PS ELFEXT
Ω dB/100m dB dB/100m dB/100m dB/100m dB/100m
1.0 100±15 ≤2.04 ≥20.00 ≥65.30 ≥62.30 ≥64.00 ≥61.00
4.0 ≤4.05 ≥23.01 ≥56.27 ≥53.27 ≥51.96 ≥48.96
8.0 ≤5.77 ≥24.52 ≥51.75 ≥48.75 ≥45.94 ≥42.94
10.0 ≤6.47 ≥25.00 ≥50.30 ≥47.30 ≥44.00 ≥41.00
16.0 ≤8.25 ≥25.00 ≥47.24 ≥44.24 ≥39.92 ≥36.92
25.0 ≤10.42 ≥24.32 ≥44.33 ≥41.33 ≥36.04 ≥33.04
31.2 ≤11.71 ≥23.65 ≥42.89 ≥39.89 ≥34.12 ≥31.12
62.5 ≤16.99 ≥21.54 ≥38.36 ≥35.36 ≥28.08 ≥25.08
100 ≤21.98 ≥20.11 ≥35.30 ≥32.30 ≥24.00 ≥21.00



Applications:

Widely used for cabling between telecommunication outlet of working areas and
distribution frame of cross connection closet in building GENERIC CABLING
SYSTEM, and the cabling between user telecommunication outlet and distribution
frame in residential cabling system.

National University of Singapore Teaching Building
RoHS 0.5mm Cat5E U UTP Outside Plant Cable Support OEM ODM 2


Singapore Government HDB
RoHS 0.5mm Cat5E U UTP Outside Plant Cable Support OEM ODM 3
​

Chengdu Metro Cabling
RoHS 0.5mm Cat5E U UTP Outside Plant Cable Support OEM ODM 4

FAQ

Cat.5E F-UTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are
acceptable.

Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.

Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass
production

Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.

Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
