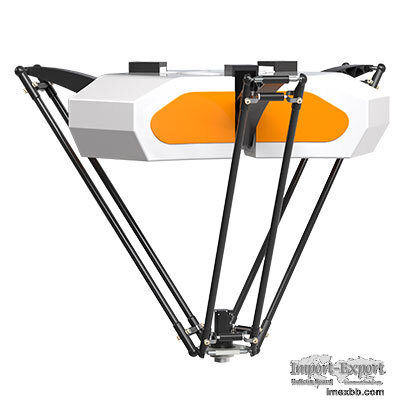

Robotphoenix Delta Robot

Delta Robot Definition

With competitive delta robot cost and price, bat series delta robot has great
advantages in operational applications like fast grasping and sorting as well
as programming. Due to the fine delta robot parts, its positioning accuracy is
superior, and its re-positioning accuracy is less than 0.1mm, which meets most
application needs. It is also equipped with abundant function expansion. Its
strong openness and flexibility allow itself a re-development. Small delta
robot can be flexibly applied to precise assembling, sorting, picking and
placing, etc., because of the fast-grasping action.

Different Types of Delta Robot

BAT2000M-S15 Delta Robot
Maximum load 15kg.

Diameter of working space 2000mm.

Re-positioning accuracy 0.1mm.


BAT1600-S6 Delta Robot
Maximum load 6kg.

Diameter of working space 1600mm.

Re-positioning accuracy 0.1mm.


BAT1300-S6 Delta Robot
Maximum load 6kg.

Diameter of working space 1300mm.

Re-positioning accuracy 0.08mm.


BAT1300B-S50 Heavy Load Delta Robot
Maximum load 50kg.

Diameter of working space 1300mm.

Re-positioning accuracy 0.02mm.


BAT1100-S3 Delta Robot
Maximum load 3kg.

Diameter of working space 1100mm.

Re-positioning accuracy 0.03mm.


BAT1100M-E3 Delta Robot
Maximum load 3kg.

Diameter of working space 1100mm.

Re-positioning accuracy 0.08mm.


BAT1000B-S60 Heavy Load Delta Robot
Maximum load 60kg.

Diameter of working space 1000mm.

Re-positioning accuracy 0.02mm.


BAT800M-E3 Delta Robot
Maximum load 3kg.

Diameter of working space 800mm.

Re-positioning accuracy 0.08mm.


BAT800-S3 Delta Robot
Maximum load 3kg.

Diameter of working space 800mm.

Re-positioning accuracy 0.08mm.

Delta Robot Application

1
A robot delta pick and place takes a top-load-ability design and is compatible
of various of grippers, such as delta spider robot that can all pick and place
products quickly on the conveyor.

2
At present, electric drive is the most coommonly used driving mode of a delta
robot. The driving motor of the modern industrial robots is generally a stepper
motor, a DC servo motor or an AC servo motor, which is featured by its delta
robot speed.

How is A Delta Robot Controlled?
The built-in vision module in Robotphoenix's control system takes 3D camera or
3D sensor to collect 3D information of the target and obtain the related
"point-cloud". According to the obtained point-cloud data, the required results
are produced by using 3D algorithm, combining with 3D features. Compared with
other industrial robots such as SCARA robot for sale, the delta robot is guided
to complete the related work through internal communication, and multiple
machines can share just one set of vision system.

Robotphoenix always concentrates on the research and development of lightweight
high-speed industrial robots. Robotphoenix constantly challenges to break
through the core technical problems and adheres to the mission of providing
excellent robotic products and services for global robotics and manufacturing
enterprises.

Minimum Order: 1 sets
