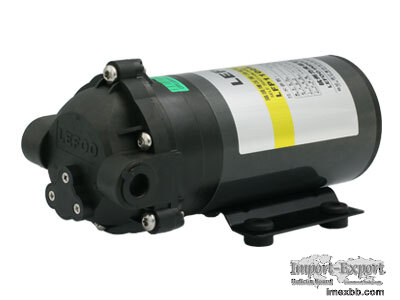

RO BOOSTER PUMP

This Pump booster series is powered by ferrite magnetic motor, 0.5/0.7 Mpa
pressure feeding,43~60db noise level, adjustable pressure, Workflow 0.6~5.5
Liter per minute, Max current 1.4~5.5A

50 GPD RO Pump
RO Booster Pump
Work Flow: 0.6L/min
Work Pressure: 0.5 Mpa=72.5Psi

Noise Level: ≦43db
Max Current: ≦1.1A
75 GPD RO Pump
75 GPD RO Pump
Pressure Booster Pump
Work Flow: 0.75L/min
Work Pressure: 0.5 Mpa=72.5Psi

Noise Level: ≦43db
Max Current: ≦1.3A

100 GPD RO Pump
Pressure Booster Pump
Work Flow: 0.98L/min
Work Pressure: 0.5 Mpa=72.5Psi

Noise Level: ≦43db
Max Current: ≦1.4A

150 GPD RO Pump
Pressure Booster Pump
Work Flow: 1.45L/min
Work Pressure: 0.5Mpa=72.5Psi
Noise Level: ≦48db
Max Current: ≦2.0A

200 GPD RO Pump
Pressure Booster Pump
Work Flow: 1.8L/min
Work Pressure: 0.5Mpa=72.5Psi
Noise Level: ≦50db
Max Current: ≦2.5A

300 GPD RO Pump
Pressure Booster Pump
Work Flow: 2.6L/min
Work Pressure: 0.5 Mpa=73Psi

Noise Level: ≦53db
Max Current: ≦3.2A

400 GPD RO Pump
Pressure Booster Pump
Work Flow: 2.95L/min
Work Pressure: 0.5Mpa=72.5Psi
Noise Level: ≦56db
Max Current: ≦4.0A

500 GPD RO Pump
Pressure Booster Pump
Work Flow: 2.95L/min
Work Pressure: 0.5 Mpa/0.7Mpa

Noise Level: ≦55db
Max Current: ≦4.2A (24V)/2.5A (36V)

600 GPD RO Pump
Pressure Booster Pump
Work Flow: 3.6L/min /3.2L/min
Work Pressure: 0.5 Mpa/0.7Mpa

Noise Level: ≦55db
Max Current: In Specifications

Booster Pump 230V
Pressure Booster Pump
Flow Range: 0.6L/min to 3.2L/min
Work Pressure: 0.5Mpa / 0.7Mpa
Max Current: ≦0.24A / ≦0.57A
Save up to 30% of electricity

Diaphragm Booster Pump 115V
Pressure Booster Pump
Flow Range: 0.6L/min to 3.2L/min
Work Pressure: 0.5Mpa / 0.7Mpa
Max Current: ≦0.24A / ≦1.05A
Save up to 30% of electricity

800 GPD RO Pump
Pressure Booster Pump
Work Flow: 5L/min or 4L/min

Work Pressure: 0.5Mpa / 0.7Mpa
Noise Level: ≦60db
Max Current: ≦4.0A

1000 GPD RO Pump
Pressure Booster Pump
Work Flow: 5L/min or 4.5L/min
Work Pressure: 0.7Mpa
Noise Level: ≦60db
Max Current: ≦5A
1200 GPD RO Pump
Pressure Booster Pump
Work Flow: 5.5L/min
Work Pressure: 0.7Mpa
Noise Level: ≦60db
Max Current: ≦4.5A (two head) / ≦4.0A(one head)

BRIEF INTRODUCTION OF LEFOO RO BOOSTER PUMP

The RO booster pump is optimal for water purifiers. Easy to install booster
pump for osmosis devices. The booster pump increases the pressure to 5-7 bar
(75-100psi), which greatly improves RO water quality and quantity. The
increased pressure also allows the membrane to work more efficiently often
giving a lower TDS in the RO product water.

Reverse osmosis is a pressure application process. Pressure is proportional to
the efficiency of the RO water system, and also the power consumption. Low
pressure feeding a reverse osmosis membrane can cause more rejected water and
less RO drink water. If the water pressure is much lower than RO semi- membrane
requirements, then adding a booster pump for the osmosis system is quite vital.
Residential water pressure tends to range between 45 and 80 psi (pounds per
square inch).

HOW TO SELECT RO BOOSTER PUMP FROM LEFOO
The RO Self-Priming Water Pump LFP1075S,1075 means the pump can be used on
water purifier75 GPD, with vacuum pressure that is able to transfer water where
the static water resource. The Economic RO Self-priming Pump LFP1075S-P is the
price cut version The Residential Booster Pump LFP1075J means this pump is
smaller in size when compared to LFP1075S; LFP1075W means pump with adjustable
pressure settings. Voltage: 24VDC
If you need pressure differential monitor, please contact us.

Minimum Order: 1 gallons
