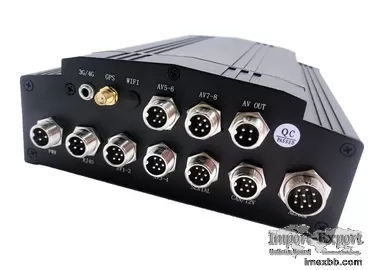

RJ45 3G Mobile DVR Analog Cameras 4 Channel 2.5" SATA Digital Video Recorde

4G Real Time Recording 3G Mobile DVR CCTV for Vehicles Power 9-32V, with
Circuit Protection
3G Mobile DVR CCTV system includes:

One 8CH 1080P HDD MDVR with 3G/4G GPS WIFI for option
6-8 pcs 1080p/960P/720P cameras/ 8 Analog cameras with extension cables
One Hard disk or SSD
One Monitor, Sound Pick-up, Talkback device for option
Canbus for option
Oil sensor for Option
How does 3G Mobile DVR CCTV​ work?



The system that records both the inside and outside of your vehicle to prove
what really happened in any situation.



The 8 camera device uses 4 regular HD 1080P cameras as well as 4 HD 1080P
night/day cameras.



The DVR device is a power managed and wide voltage +8V~+36VDC.



The model is designed for all commercial vehicles, especially those that carry
passengers.



3G Mobile DVR CCTV Main Features



Professional Car Power Design,8-36V wide voltage,Provide reverse
voltage/overload/short circuit protection
2TB HDD / SSD ,protect DVR from shock & Dust damage;
Exclusive File System protect data completeness;
ACC Delay off,can set 3- 255 mins to work;
Unique UPS Technology ensures the integrality of record when power failure
occurs,even can for 8-10s.
Support GPS/GLONASS,3G/4G Module Optional,WIFI extend;
Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote
control platform;
8CH Alarm inputs(Door Open,Light,Turn direction,brake,reverse etc),can linkage
kinds of alarm;
High level aviation interface,easily installation and better shockproof, more
stable;.
Easily Smart GUI Interface, saving time in device setting;


3G Mobile DVR CCTV Main Specifications



Item Description
OS Linux
Graphics Operation Interface System parameters can be set through external
display and remote controller
Security Management 2-level management for user password, administrator
password, supporting encrypted transmission
Video and Preview Video Input, Output 8-channel video input, 1channel
video output; 1.0Vp-p, 75Ω
OSD Character superposition function, information superposition of time and
date, device ID and GPS, etc.
Video Compression Format Compression coding. Applying Hisilicon hi-
performance processor.
Dual-Stream Supported
Preview Function Preview of 1-channle, 8-image stitching, supporting
full screen triggered by event and switching of stitched images
Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120
frames/s, up to 30 frames/s per channel
Resolution AHD 1080P/ 720P, D1, CIF 8channel
Quality Grade 1 to grade 5 for selection (descending)
Bit Rate
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps,
8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection
720P: 2048Kbps~6144Kbps

Audio Audio Input, Output 8-channel input, 1-channel output
Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD
card, which supports up to 128G, supporting data redundancy storage technology;
File Format/ System Special file system
Video Strategies Recording at startup by default, supporting timed
recording, recording triggered by alarm and event, as well as manual recording
Video Search Searching by time, type, storage device and other conditions
Video Playback Supporting playback on local device, supporting synchronous
playback of up to 8 channels and analysis on vehicle information in the files
Supporting fast forward, fast backward, play and pause, supporting fast forward
and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from
selected time
Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 1-channel
on/off signal alarm output
Alarm Recording Prerecording function 15 seconds before alarm, duration of
recording after alarm can be adjusted from 30s ~ 30min
Storage Space Alarm Supporting settings for alarm of storage space
Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports RS485,RS232, RJ45 10M/100M self-adaptable network
interface
Wireless Transmission (Optional) Supporting Wi-Fi;
GPS (Optional) Supporting external GPS
PTZ Control Supporting PTZ control realized by local;
Parameter Configuration Supporting parameter configuration functions for mobile
DVR coding channel;
G-Sensor Embedded
System Upgrading Supporting SD card, hard drive upgrading and remote
upgrading
Power Supply and Power Consumption Power Supply
1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage DC:+8V ~ +36V
Output Voltage +12V@5*0.5A;
Power-off Protection With patented UPS power supply continuous working
technology, it can work for 3~5 seconds after external power supply is cut so
that the intactness of video data can be kept upon sudden power failure
Power Consumption <10W in normal operation; <0.5W in standby mode
Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive
preheating: -25℃ ~ +60℃
Humidity 10% to 95%
Dimensions 160(W) x62(H) x200(D) mm.
Weight Net: 2200g, Gross: 3500g
