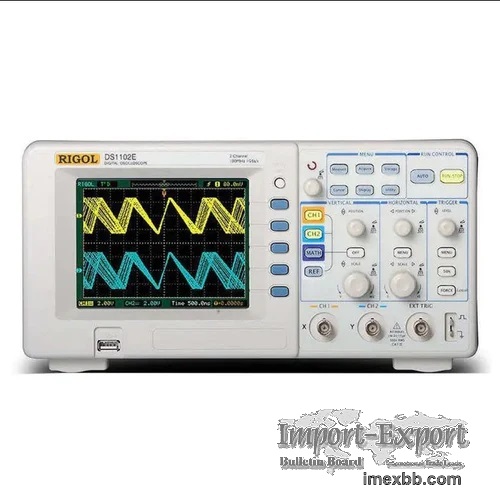

RIGOL DS1102E Puyuan Digital Storage Oscilloscope with 2 Channels

RIGOL DS1102E Puyuan 100M oscilloscope digital 50M dual channels 64K TFT
color LCD oscilloscope, high quality two channels digital storage
oscilloscope, Rigol DS1102E oscilloscope, 7 trigger modes, adjustable
trigger sensitivity, USB Host to support USB flash memory and USB printer,
the quality of the Rigol oscilloscopes is comparable to Agilent and
Tektronix oscilloscopes.

Rigol DS1102E 100MHz Dual Channels Digital Oscilloscope

Description :
It not only has compact design and 64K TFT color LCD, but also powerful
functions: Up to 1M memory depth, with ultra-zoom function, it can enable
users to observe details while surveying the whole waveform; 7 trigger
modes, adjustable trigger sensitivity, USB Host to support USB flash memory
and USB printer, and other traditional functions of RIGOL oscilloscopes.
The quality of the Rigol oscilloscopes is comparable to Agilent and
Tektronix oscilloscopes.

Product Features :

Ultrazoom: You can sample up to 1 million measurement points with this
oscilloscope. Easily zoom in and scroll within the signal. Survey
macroscopically, observe microscopically.
Automatically and Cursor Measure: This oscilloscope series provides 20
types of wave parameters for automatically measuring, which contains 10
Voltage and 10 Time parameters. In cursor mode, users can easily measure by
moving cursor. Besides, 3 types of cursor measurement are optional: Manual,
Track and Auto.
Adjustable Trigger Sensitivity: With the Rigol oscilloscopes you have the
ability to filter noise from the signal avoids false triggers.
Alternate Trigger: Provides a true dual timebase display.
Slope Trigger: Triggers on the signals rise time or fall time is user
defined.
Rising and Falling Edge Trigger: Mainly used to view eye-diagrams normally
only available in more advanced DSO's.
Pass / Fail Test: The Pass/Fail function monitors the changes of signals by
comparing whether the input signal is within the pre-defined mask. The
testing results not only can be displayed on screen or output by isolated
pass/fail port, but also can be alarmed according to turn on system sound.
FFT (Fast Fourier Transformation): The FFT function provides spectrum
analysis function for users. Supported FFT windows: Rectangle, Hanning,
Hamming, Blackman
File System and USB Stick Support: The device supports an easy-to-use file
system. It allows for both USB flash drive and local file storage.

DS1102E Digital Storage Oscilloscope :
2 channels standard accessories : 100MHz bandwidth 1 passive probe
PVP2150*2
1 Gsa/s sampling rate 2 power cord
1 Mpts stroage depth 3 quick guide
interface: USB device, USB host, RS232, Udisk storage and PicBridge
printing

Product Specification :

Model: DS1102E
Bandwidth: 100MHz
Aisle: 2+ external trigger
Storage depth: 1 Mpts
Real-time sampling rate: 1 Gsa/s single channel, 500Msa/s dual channel

File System and USB Stick Support
The device supports an easy-to-use file system. It allows for both USB
flash drive and local file storage.

Package includes :

1pc x Rigol DS1102E digital oscilloscope
2pcs x Probes
1pc x USB Cable
1pc x Power cord
1pc x Quick start (user manual)

Minimum Order: 1 pieces
