rigid-flex printed circuit board

Rigid-Flexible Structure 1+N+1HDI、2+N+2HDI;
Fly-tailed Rigid-flex Board(≤20 Layers)
Raw Material
The Material for Flexible Boart Section SF305、RF-775、Dupont AP(杜邦 AP)
The Material for Rigid Boart Section IT-180A、S1000-2、 TU-768(TU-752)、
85N、RO4350B Series、VT-901、R-5775、TU-872SLK、TU-862HF
Stiffener Material PI
Coverlay SF305C Series、FHK Series、FR Series
Color
Rigid Board Section Green、Red、Blue、Black、White
Flexible Board Section Green、Red、Blue、Black、White
Layer Count
Rigid Board Section 2-20 Layers
Flexible Board Section 1-8 Layers
Board Thickness
Rigid Board Section 0.3mm-4.0mm
Flexible Board Section 0.05mm-0.80mm
Size/Dimension
Maximum Unit Size 16inch*29inch
Minimum Unit Size 10mm*15mm
Size/Dimension Tolerance
Rigid Board Section ±4mil
Flexible Board Section ±4mil
Copper Thickness (The Maximum Copper Thickness)
Copper Thickness for Inner Layers ≤2OZ
Copper Thickness for Outer Layers ≤3OZ
The Distance from Hole to Step Edge
The Distance from Hole to Step Edge 0.5mm
Max.Aspect Ratio
Rigid Board Section(This Parameter is for Rigid Board Section) 12:1
Minimum Core Thickness
The Innner Layer Core Thickness for Flexible Board Section 0.5mil
The Innner Layer Core Thickness for Rigid Board Section 0.05mm
The Specification for Prepreg 106、1080
Surface Treatment/Finish
Without Lead HASL Lead Free、ENIG、ENEPIG、Flash Gold、Soft bonding gold(Soft
Gold Plating)、Hard Gold Plating、Immersion Silver、OSP、Immersion Tin、ENIG+OSP、
ENIG+G/F、Whole Board Gold Plating+G/F
With Lead HASL
Electrial Reliability
Electromagnetic shielding SF-PC6000
Impedance Control Normal Tolerance: Single ended Impedance:±5Ω
(≤50Ω),±10%(>50 , Ω) Differential Impedance:±5Ω(≤50Ω),
±10%(>50 , Ω)
Special Tolerance: Single ended Impedance:±3Ω(≤50Ω),±8%(>50Ω)
Differential Impedance:±4Ω(≤50Ω),±8%(>50Ω) ,

and

Rigid-Flexible Structure 1+N+1HDI、2+N+2HDI,3+N+3HDI;Fly-tailed Rigid-
flex Board(≤20 Layers)
Raw Material
The Material for Flexible Boart Section SF305、RF-775、Dupont AP(杜邦 AP)
The Material for Rigid Boart Section IT-180A、S1000-2、 TU-768(TU-752)、
85N、RO4350B Series、VT-901、R-5775、TU-872SLK、TU-862HF
Stiffener Material PI
Coverlay SF305C Series、FHK Series、FR Series
Color
Rigid Board Section Green、Red、Blue、Black、White
Flexible Board Section Green、Red、Blue、Black、White
Layer Count
Rigid Board Section 2-20 Layers
Flexible Board Section 1-8 Layers
Board Thickness
Rigid Board Section 0.3mm-4.0mm
Flexible Board Section 0.05mm-0.80mm
Size/Dimension
Maximum Unit Size 16inch*29inch
Minimum Unit Size 10mm*15mm
Size/Dimension Tolerance
Rigid Board Section ±4mil
Flexible Board Section ±4mil
Copper Thickness (The Maximum Copper Thickness)
Copper Thickness for Inner Layers ≤2OZ
Copper Thickness for Outer Layers ≤3OZ
Surface Treatment/Finish
Without Lead HASL Lead Free、ENIG、ENEPIG、Flash Gold、Soft bonding gold(Soft
Gold Plating)、Hard Gold Plating、Immersion Silver、OSP、Immersion Tin、ENIG+OSP、
ENIG+G/F、Whole Board Gold Plating+G/F
With Lead HASL

Minimum Order: 1 pieces

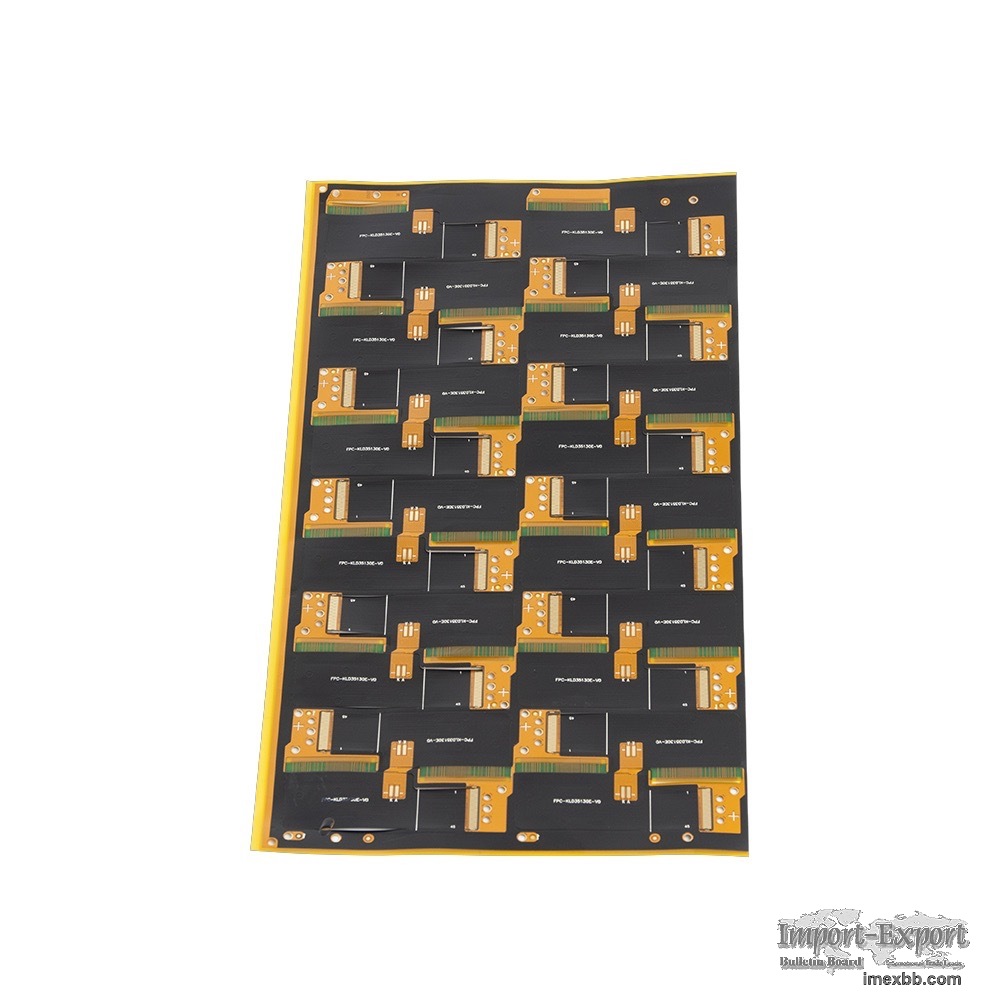

rigid-flex printed circuit board
