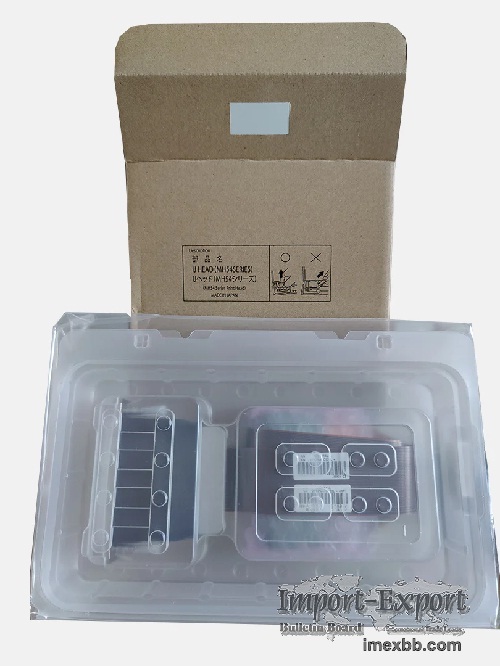

Ricoh MH5420 GEN5 UV Printhead (248mm) N221414J

PRICE $ 1302

This GEN5 UV printhead is suitable for a range of UV and solvent printers
(Ricoh part number N221414J). It supports up to four colours and has a
total of 1.280 nozzles. It is built with longevity and robustness in mind
and used in the latest industrial inkjet printers. This is Ricoh original
printhead part (number MH5420) and it is covered by a manufacturer
warranty. This Ricoh GEN5 is 248mm long in total (head body + cable +
connectors). Head cable is 148 mm long.

The following items are expressly excluded from warranty coverage:
defects in printers related, in any way, to the use of any non-original or
DIGINK inks or ink cartridges and nozzle clogging
defects related to misuse, abuse, accident, neglect, lack of use, or
improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in
the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components,
or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature.


Product Specifications

Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo type: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Ink compatibility: UV Inks
Life: 100 billion actuations per nozzle

Minimum Order: 1 pieces
