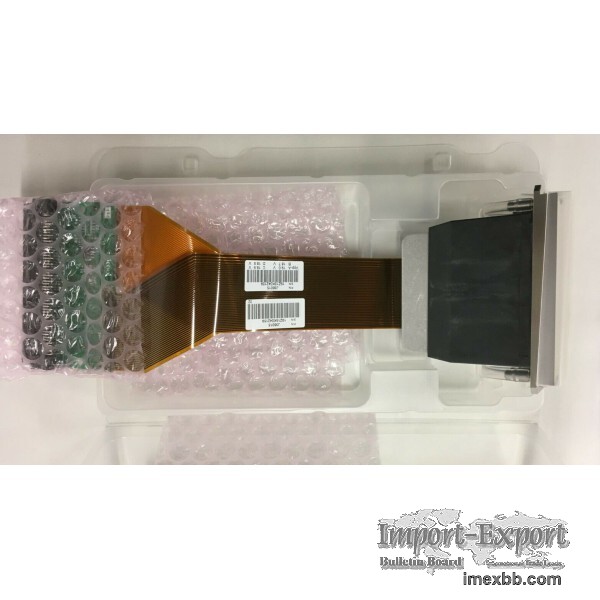

Ricoh MH5420 GEN5 Printhead Water

JV400-LX GEN5 Head - M014384
Ricoh MH5420 GEN5 Printhead Water (Cable L: 248mm)



This Ricoh GEN5 water printhead with a cable length of 248mm is suitable for a range of water-based printers. It supports up to 2 colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead and it is covered by a manufacturer warranty.

This Ricoh GEN5 is available in two different cable lengths: 248mm and 500mm. This printhead has a cable of 258mm (Ricoh part number J36002 replacing N221414P).

Product Specifications

Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo yype: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Ink compatibility: Water Inks
Life: 100 billion actuations per nozzle

Printer compatibility

Mimaki JV400-130LX
Mimaki JV400-160LX

Minimum Order: 1 pieces
