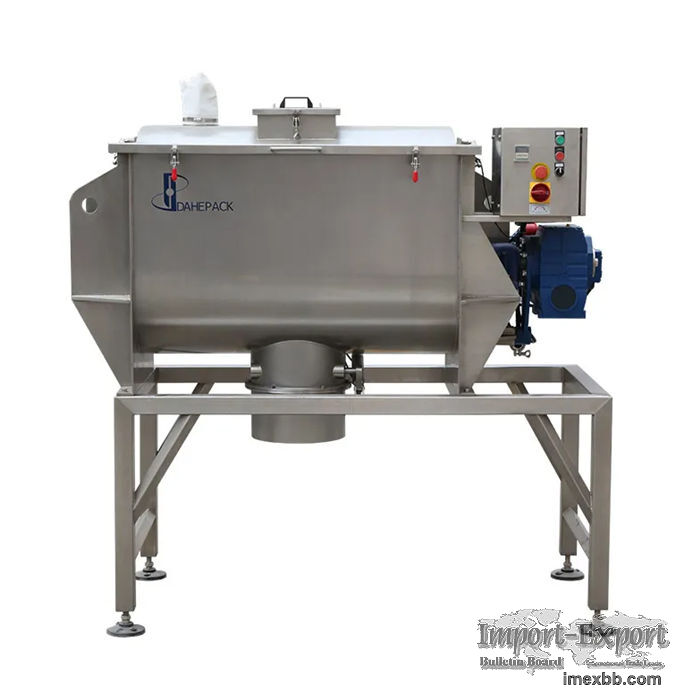

Ribbon Mixer Powder Blender

The ribbon blender mixes free-flowing raw materials within a U-shaped trough. A
horizontal agitator consisting of precisely pitched inner and outer helical
ribbons moves materials in a well-balanced axial and radial flow pattern. High-
quality ribbon blenders feature tightly controlled clearances between the
through surfaces and agitator tips. Good design and expert fabrication ensure
fast repeatable mixing, easy clean-up, low maintenance, and long service life.
Ribbon Mixer Main Features
Ribbon Blenders consist of U shape horizontal trough and specially fabricated
ribbon agitator.
Effective mixing load（40%-80%）
High mixing speed and short uniform time. Mixing speed is around 5-15min
All stainless steel 304 material
Full Mirror polished mixing tank inside, as well as ribbon and shaft
Safety switch, safety grid
Discharge gate can be manual or pneumatically operated for direct filling in
bags or dumping into storage bin.
Ribbon powder blender Main Technical Data
Model DH-JD-200 DH-JD-300 DH-JD-500 DH-JD-1000 DH-JD-
1500 DH-JD-2000
Effective Volume 200L 300L 500L 1000L 1500L 2000L
Fully Volume 284L 404L 692L 1286L 1835L 2475L
Turning Speed 46rpm 46rpm 46rpm 46rpm 46rpm 46rpm
Total Weight 250kg 350kg 500kg 700kg 1000kg 1300kg
Total Power 4kw 5.5kw 7.5kw 11kw 15kw 22kw
Length（TL） 1370 1550 1773 2394 2715 3080
Width（TW） 834 970 1100 1320 1397 1625
Height（TH） 1647 1655 1855 2187 2313 2453
Length（BL） 888 1044 1219 1500 1800 2000
Width（BW） 554 614 754 900 970 1068
Height（BH） 637 697 835 1050 1155 1274
Radius(R) 277 307 377 450 485 534
Power Supply 3P AC208-415V 50/60Hz
