Ribbon Fiber Optical Cable Fusion Splicing Protection Multi core

Description:

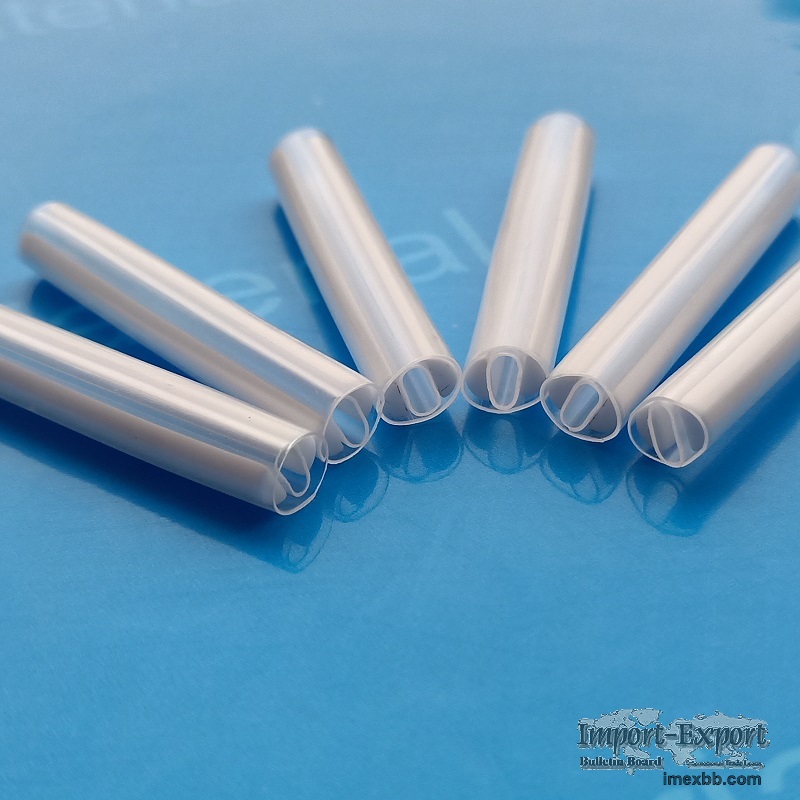

Ribbon Fiber Fiber Optic Protection Sleeve is designed for Ribbon fiber,
normally it's 4 cores, 6 cores, 8 cores and 12 cores fiber optic protection
sleeve for flat fiber cable.
Ribbon Fiber Fiber Optic Protection Sleeve is applied to the optical fiber
closure to fix and protect the optical fiber when splicing. The sleeves can
be divided into two types (single sleeve and ribbon sleeve) according to the
function. The single type is used for the single-fiber, and the mass type is
used for the ribbon fiber. It is different in the reinforcement between two
types. The single one realizes the reinforcement by the stainless steel
needles, the later one via the ceramic reinforcement member to realize the
function. Ribbon sleeve means there are several cores for the fiber. So the
mass sleeve includes 4cores, 6cores, 8cores, 12 cores (for types).
This product is constructed with an inner EVA meltable adhesive tube, a
polyolefin heat shrink outer tube and either single or dual strength
members. Our single strength member sleeve which has become an industry
standard, has an after shrink diameter of 4.9 X 4.4 mm, and utilizes a
special glass member.

Minimum Order: 2000 packs
