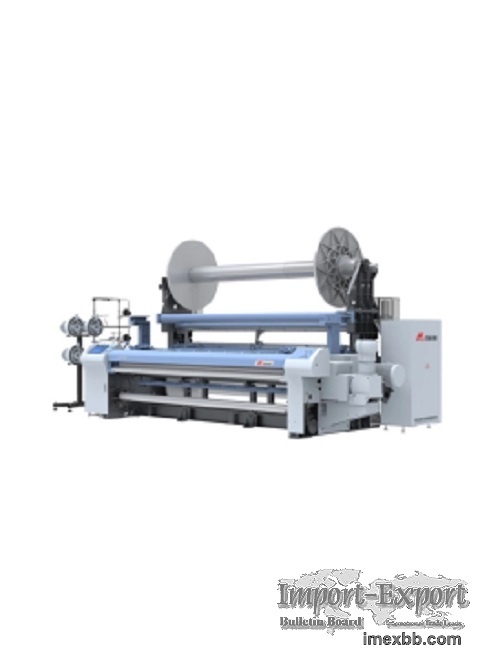

The RFJAT28 Air Jet Terry Loom is a specialized weaving machine designed for
the production of terry cloth, a type of fabric with uncut loops that can
absorb large amounts of water. This high speed rapier loom uses an air jet
mechanism, which involves shooting the weft yarn across the loom using a jet of
air, allowing for high-speed weaving. The RFJAT28 jacquard rapier loom machine
is specifically designed to create the looped structure of terry cloth, making
it ideal for producing towels, bathrobes, and other similar products. Its high-
speed operation and specialized design make it a valuable tool in the textile
industry.

Specification of RFJAT28 Air Jet Terry Looms
Item Specifications Options
Width Reed Width 190cm, 210cm, 230cm, 260cm, 280cm, 320cm, 340cm
Working Width Reed width minus 0-60cm (190-230cm)
Reed width minus 0-60cm (above 260cm)
Weft Selector 4 colors or 6 colors at will
Power Start Type Super motor
Operation Stop controlled by magnetic brake directly
Buttons on both sides
Beating link lever
Insertion Main nozzles and sub-nozzles Stretch nozzles
Profile double reed ABS
Relay main nozzle
Shedding Electronic dobby, max 20 shafts
Electronic Jacquard
Let-off Electronic continuous positive let-off
Ground beam flange: dia 800mm Ground beam flange: dia 91 4mm, dia 1
000mm
Pile beam flange: dia 1000mm Pile beam flange: dia 1250mm
Take-up Electronic take-up
Weft density: 25-300/inch
Max cloth: dia 600mm
Cone Stand Console stand for 8 cones (4 colors)
Console stand for 12 cones (6 colors)
Terry Motion Servo terry motion: dynamic terry control Loop formation by
fabric movement. Automatic loop formation from 3 to 7 picks at will.
Loop length: 0-28mm at will, the accuracy of two neighboring loops'
height differences can be 0.1mm max
Selvage Mechanical
Yarn End Treatment Waste selvage winding roller
Weft Cutter LH mechanical
RH electronic
Weft Feeder Vibration type
Lubrication Main transmission: oil bath, other components: automatic
centralization greasing
Stop Motion Weft: photoelectric weft sensor, double sensors
Warp: two rows and two lines of electric stop motion
Other: auto stop motion for selvage yarn
Stop indicating: stop reason on panel, 4 color lamps
Automatic Control: multi-function microcomputer system, with parameter
setting/control/monitor/autodiagnosis/artifici , al intelligence interface
Inching by inverter (forward and reverse)
Others: monitor output terminal
Auto control air jet

R/S A B C W B1 B2
190 1900 2460 2385 4578 － －
210 2100 2660 2585 4778 － 1330
230 2300 2860 2785 4978 － 1430
260 2600 3160 3085 5278 1090 －
280 2800 3360 3285 5478 1090 －
320 3200 3760 3685 5878 1090 －
340 3400 3960 3885 6078 1090 －

Features of RFJAT28 Air Jet Terry Looms
1
High-Speed Weaving: The RFJAT28 Air Jet Terry Loom uses an air jet mechanism
for high-speed weaving, significantly increasing production efficiency.

2
Specialized Design: This rapier weaving terry loom is specifically designed to
create the looped structure of terry cloth, making it ideal for producing
absorbent fabrics like towels and bathrobes.

3
Versatility: The RFJAT28 jacquard rapier loom machine can handle a variety of
yarn types and sizes, allowing for the production of a wide range of terry
cloth products. This versatility makes it a valuable tool for textile
manufacturers.

If you want to buy rapier weaving loom, please contact us.

If you want to know more types of rifa weaving machine, please visit our
website.

Minimum Order: 1 sets
