Resin Bond Micron Diamond Resin Bond Diamond

Resin Bond Micron Diamond Resin Bond Diamond Light dark Resin Bond Diamond
wholesale

PRODUCT DESCRIPTION

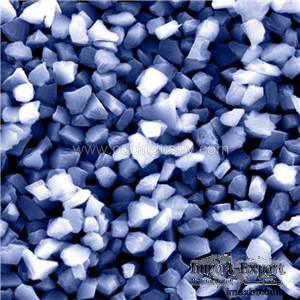

Designed for use in vitrified metal and resin bond systems, Our's resin bond
micron diamond is a synthetic material featuring a friable crystal structure.
Widely used for lapping and surface conditioning on a diverse range of
materials, resin bond micron diamond features irregular, elongated, rough-edged
crystals that are ideal for grinding tungsten carbide, ceramics and glasses.
The friability or breakdown of the diamond is a function of its polycrystalline
structure and metallic inclusions within the grains. During grinding, grains
are microfracture and new edges formed, providing efficient, free-cutting
action.
Our resin bond micron diamond is processed using state-of-the-art grading
equipment to ensure tightly controlled particle size distribution and surface
cleanliness for a variety of demanding applications.
Resin Bond Micron Diamond: RW11
Premium type.
Light dark, very blocky,  very tight particle size distribution, very clean.
High self-sharpening performance, has a high finishing effect on processed
material.
Available sizes: 0-0.5 through 40-60
Nickel coating is also available in sizes coarser than 8-12.
Resin Bond Micron Diamond: RW23
Economical type.
Light dark, very blocky,  very tight particle size distribution, very clean.
High self-sharpening performance, has a high finishing effect on processed
material.
Available sizes: 0-0.5 through 40-60
Nickel coating is also available in sizes coarser than 8-12.
Resin Bond Micron Diamond: RW21
Economical type.
Light Dark, semi-blocky, very tight particle size distribution, very clean.
High self-sharpening performance, have a good finishing result on workpieces.
Available sizes: 0-0.5 through 40-60
Nickel coating is also available in sizes coarser than 8-12.
Available sizes:
RW11 RW21 RW23
0-0.25 √
0-0.5 √ √ √
0-1 √ √ √
0.5-1 √ √ √
0.5-1.5 √ √ √
0-2 √ √ √
1-2 √ √ √
1-3 √ √ √
2-4 √ √ √
2-5 √ √ √
3-6 √ √ √
4-6 √ √ √
4-8 √ √ √
5-10 √ √ √
6-12 √ √ √
8-16 √ √ √
8-16 √ √ √
10-15 √ √ √
10-20 √ √ √
12-22 √ √ √
20-30 √ √ √
22-36 √ √ √
20-40 √ √ √
30-40 √ √ √
36-54 √ √ √
30-60 √ √ √
40-50 √ √ √
40-60 √ √ √
54-80 √ √ √

Other sizes are also available according to customer requirements.

PDC Industry is one of the diamond tools manufacturers, our main products
include diamond tools, pdc cutters, industrial diamonds, polishing pads, etc.
