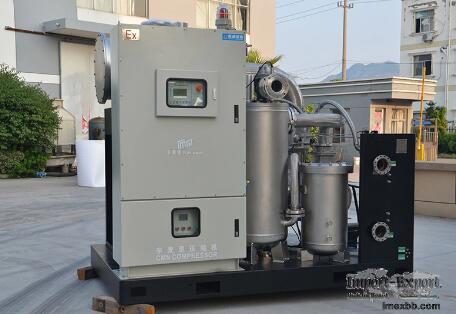

REFRIGERATED AIR DRYER FOR AIR COMPRESSOR

The characteristics determined by the partial pressure of water vapor in
compressed air and the temperature of compressed air are used for cooling,
dehydration and drying. While keeping the compressed air pressure basically
unchanged, lowering the temperature of the compressed air can reduce the water
content in the compressed air, and the excess water vapor will condense into
liquid. The refrigerated dryer uses this principle to dry compressed air using
refrigeration technology, so the refrigerated dryer has a refrigeration system.

Refrigerated air dryer working
Refrigerated air dryer how it works
The refrigerated dryer sucks the low-pressure (low-temperature) refrigerant in
the evaporator into the compressor cylinder. After the refrigerant vapor is
compressed, the pressure and temperature increase at the same time; the high-
pressure and high-temperature refrigerant vapor is pressed to the condenser.
The higher temperature refrigerant steam exchanges heat with the lower
temperature cooling water or air. The heat of the refrigerant is taken away by
water or air and condensed, and the refrigerant vapor becomes a liquid.

This part of the liquid is then transported to the expansion valve, flows
through the expansion contact into a low-temperature and low-pressure liquid
and enters the evaporator; in the evaporator, the low-temperature, low-pressure
refrigerant liquid absorbs the heat of the compressed air and vaporizes
(commonly known as "evaporation") , and the compressed air condenses out a
large amount of liquid water after being cooled; the refrigerant vapor in the
evaporator is sucked away by the compressor, so that the refrigerant goes
through four processes of compression, condensation, throttling, and
evaporation in the system, thus Completed a cycle.

For more information about refrigerated air dryer manual and buy refrigerated
air dryer, please feel free to contact us!
