Refractory kiln Silicon carbide plate Sic plate for sanitary ceramic

Oxide bonded Refractory kiln furniture Silicon Carbide plate



1. Introduction

Oxide Bonded SiC plate material naturally has good properties of large heat
radiation and heat strength. In our plant, it is mainly producedas thin kiln
refractory materials,for example, beams,Pillar,Batts and Sagger and so on.These
products cannot only reduce the kiln capacity, but also raise kiln loading capacity
and product quality, shorten the production cycle,is the ideal indirect materials
for ceramic glazed bake&sintering.



2. Characteristic

1. It has excellent thermal stability and distortion resistance at high
temperature.

2. Superior corrosion and oxidation resistance.

3. Low apparent porosity and thermal expansion.

4. Outstanding thermal shock resistance.

5. Excellent thermal conductivity







3. Technical parameters

item Data
SiC%≥ 85-90
Fe2O3 %≤ 0.5
Density g/cm3≥ 2.70
Apparent porosity %≤ 7-8
Cold Modulus of Rupture Mpa≥ 30
Refractoriness (Degree) 1750
Max.Service Temp
1400( usually fit for 1200-1400 degree)




4. Application

1. Sanitary ceramic

2. Daliy ceramic (dishes, bowls,cups and so on)

3. Construction ceramic

4. Refractory ceramic

5. Others

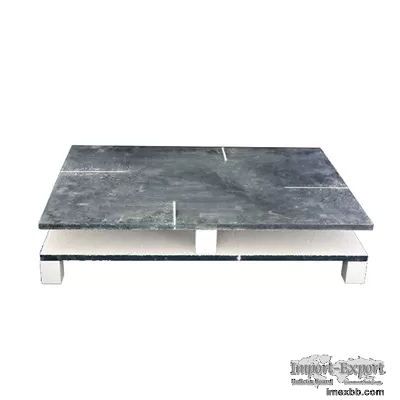

Refractory kiln Silicon carbide plate Sic plate for sanitary ceramic 0

Refractory kiln Silicon carbide plate Sic plate for sanitary ceramic 1



5. Package

Packed individially with foam carpet and then put them safely in wood case or as
per your requirement.



6. Our service

Your problems can be responsed in 12 hours can we will give you solutions in 24
hours. More than 20 years experience in refractory materials can provide you more
support in technique.
