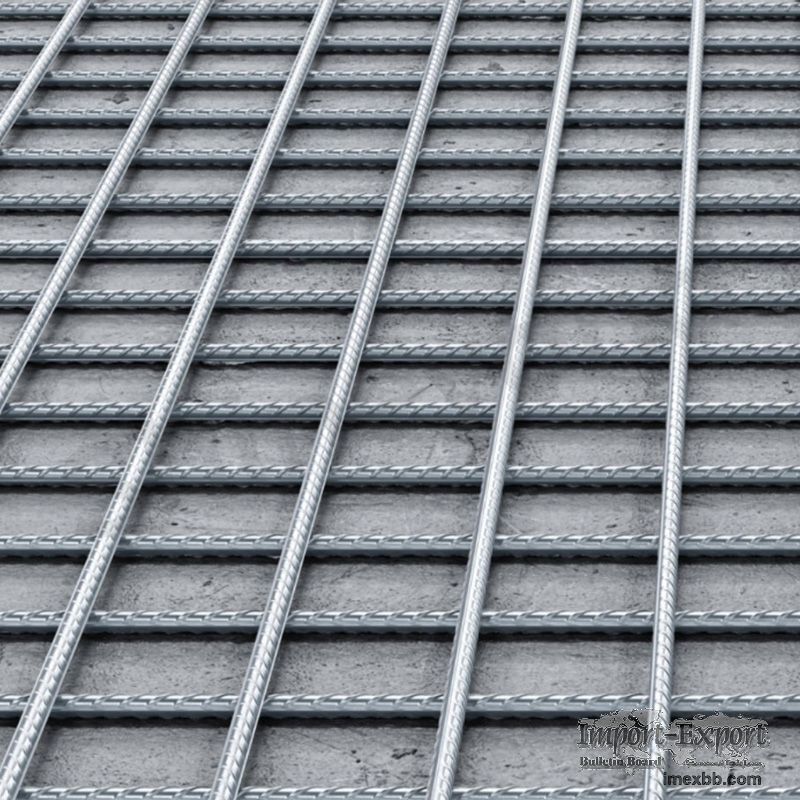

Rebar welded wire mesh panels

Welded reinforcing mesh also known as welded wire reinforcement, is a kind of
mesh reinforcement.
Reinforcing mesh is a highly efficient, economical and flexible for concrete
reinforcement, greatly save the construction time and reducing the labor force.
It is widely used in road and highway construction, bridge engineering, tunnel
lining, housing construction, floor, roof, and walls, etc.
Below are different categories of steel reinforced mesh you can purchase for
your construction work.
· Square opening steel reinforced mesh: This mesh has stainless wires that run
vertically and horizontally supporting each other while forming small squares.
· Rectangular steel reinforced mesh: This mesh has stainless wires that run
vertically and horizontally supporting each other while forming smaller
rectangular shapes.
· Welded steel reinforced mesh for building vertical walls.
· Customized types, also known as special steel reinforced mesh.
Ref No. Std Unit Longitudinal
Wires(mm) Cross Wires(mm) Pitch of
wire(mm) Mass(Kg) Mass(Kg/m2)
Q131 Sheet 5 5 150 x 150 22.476 2.091
Q188 Sheet 6 6 150 x 150 32.401 3.014
Q221 Sheet 6.5/5.0 6.5 150 x 150 33.707 3.136
Q295 Sheet 7.5/5.5 7.5 150 x 150 44.245 4.116
Q378 Sheet 8.5/6 8.5 150 x 150 66.659 5.157
