Reactor Internals

At YUBO, we provide a comprehensive range of wedge wire filter strainers
tailored for various industries, including oil and gas, petrochemicals,
water treatment, filtration, food processing, and the paper industry. With
decades of experience, we specialize in creating high-quality reactor
internals for hydroprocessing reactors, designed to meet the demanding
specifications of the refining and petrochemical industries.



Our reactor internals are engineered to offer exceptional performance,
ensuring optimal catalyst volume and utilization, improving product yields,
extending cycle life, and enabling higher-margin feed processing.



Reactor Internals

Our Reactor Internals can help refiners:
INCREASE PRODUCT YIELDS

INCREASE CYCLE LIFE

PROCESS HIGHER MARGIN FEEDS



1. Support Grids
Support grids serve as retention devices for the catalyst, covering the
entire cross-section of the reactor vessel. They are crucial for maintaining
structural integrity and ensuring uniform flow distribution.

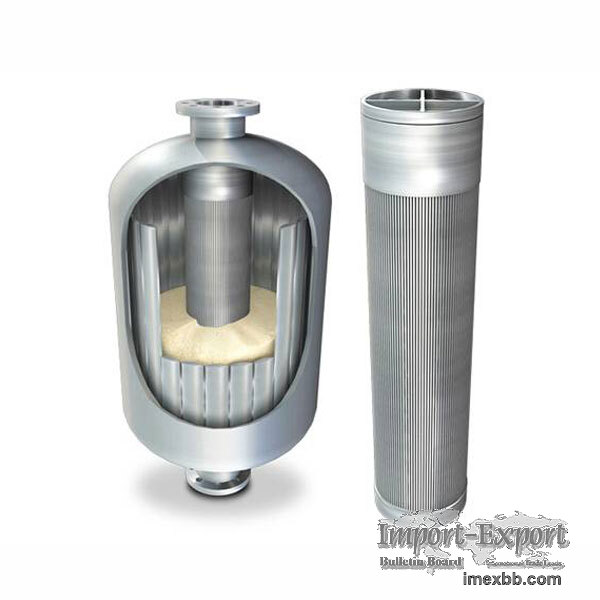

2. Center Pipe and Inner Screen
The center pipe or inner screen plays a vital role in radial flow systems.
With a cylindrical shape, it delimits the inner side of the catalyst bed and
is typically used in vertical reactors. This component ensures optimal flow
distribution and collection.



3. Scallops
Scallop assemblies form the outer screen component of radial flow systems.
Positioned parallel to the inner vessel wall, they are designed to support
the catalyst bed's outer side while facilitating the effective distribution
and collection of flow.



4. Header and Laterals
Our header and lateral systems are engineered to efficiently distribute or
collect gas and liquid within the reactor. The header pipe or hub attaches
multiple screen tubes, ensuring uniform flow and eliminating wall effects or
channels that could hinder efficiency.



YUBO wedge wire reactor internals technology uniformly distributes liquid
and gas, minimizes thermal maldistribution, and maximizes catalyst volume
and utilization to improve performance and safety.



Our reactor internals represent a high-performance, low-cost investment
opportunity. They are engineered to prevent fouling and enhance catalyst
volume, addressing common industry challenges while providing long-term
benefits.



With quick implementation, low capital investment, and minimal risk, YUBO
reactor internals provide a compelling solution for refiners seeking
efficiency, reliability, and performance.



Contact Us Today!
For more information or inquiries, please reach out to our expert team:



Email: sales@ubofilter.com

Phone: +86-18032153916

Minimum Order: 1 sets
