Razor Wire

Concertina Razor Wire: Enhancing Security with Temporary Fencing Solutions
Frishine supplies high-quality razor wire products used to enhance the security
level of temporary fencings. Our razor wire options include straight line razor
ribbons, concertina razor wire coils, welded razor mesh, each designed to meet
specific security fencing needs and applications.

Razor Wire Blade Profiles:
BTO-10 Razor Wire:
BTO-10 Razor Wire features a blade length of 10mm, 13 mm in width, thickness
0.5mm, a core wire diameter 2.5mm, with a blade spacing of 26mm. This razor
wire is typically supplied in coils with a standard length of 10m, featuring 33
loops per coil for extended length.

BTO-18 Razor Barbed Wire:
BTO-18 Razor Barbed Wire features a blade length of 18mm, 15mm wide, blade
spaced at 35mm, blade thickness of 0.5mm and a core wire diameter of 2.5mm,
providing a solid barrier. Coils are generally available in 10m standard
lengths, around 33 loops.

BTO-22 Razor Wire Concertina:
The BTO-22 Concertina Razor Wire features a blade length of 22mm and 15mm in
width, with a blade space of 34mm, blade thickness 0.5mm and a core wire
diameter of 2.5mm. This razor wire is commonly formed in concertina coils with
an outside diameter of 600mm and a standard coil length of 10m, in 55 loops
for enhanced security perimeters.

BTO-22 Welded Security Razor Mesh:
BTO-22 Welded Security Razor Mesh is flat sheet razor wire welded into diamond
mesh. Blade thickness of 0.5mm and a core wire diameter of 2.5mm, blade 22mm
long and 15mm wide. The razor mesh is typically produced in sheets or rolls.

BTO-28 Blade Razor Wire:
BTO-28 Razor Wire features a blade length of 28mm and 15mm in width, a blade
spacing of 45mm. With a blade thickness of 0.5mm, BTO-28 Blade Razor Wire has a
standard core wire diameter of 2.5mm. This razor wire is available in coils of
10m standard length and 53 loops.

BTO-30 Razor Blade Wire:
BTO-30 Razor Blade Wire features a blade length of 30mm and 18mm in width, with
a blade spacing of 46mm, blade thickness of 0.5mm and a core wire diameter of
2.5mm. Standard coil lengths 10m, 54 loops, suitable for medium level security
fencing.

CBT-60 Razor Wire Concertina:
CBT-60 Razor Wire Concertina features a blade length of 60mm, 32mm in width,
blade spaced at 96mm, thickness of 0.6mm and a core wire diameter of 2.5mm.
This concertina wire typically has an diameter of 730mm and standard coil
lengths 10m, with about 55 loops per coil, designed for high security fencing.

CBT-65 Concertina Razor Wire Coils:
CBT-65 Concertina Razor Wire Coils feature a blade length of 65mm, 21mm in
width, with a 100mm space between blades, thickness 0.6mm and core wire
diameter 2.5mm. These concertina coils usually have an outside diameter of
800mm, supplied in 10m lengths, in 56 loops, ideal for high-security fencing.

SS-316 Concertina Razor Wire with Galvanized Core
Specifications:

Diameter: 600 mm (±50mm)
Blades: Made from SS-316 stainless steel, with excellent corrosion resistance
and durability.
Core Wire: Galvanized, with a diameter of 2.50mm (± 0.2mm), offering
additional protection against rust and environmental elements.
Loops: 24 (±1), conforming to ASTM F1910 standards.
This Concertina Razor Wire is designed for high-security applications. The use
of SS-316 blades coupled with a high tensile galvanized steel core wire makes
this razor wire an ideal choice for coastal areas and military uses.

Concertina Razor Tape Fencing Systems
960 mm Concertina Barbed Tape for Security Fencing Tops

Diameter: Minimum 960 mm, concertina razor coils stretched to a maximum of 10
meters.
Core Wire: 2.5 mm minimum diameter, high-tensile GI wire, heavily galvanized.
Tape Thickness: 0.5 mm, heavily galvanized.
Tape Width: 15 mm.
Barb Type: MBBT, with a length of 22 mm and spacing of 13 mm.
Clips: 5 per coil.
Space Between Coils: 180 mm.
Turns and Loops: 112 turns, 56 loops.
Galvanization: All metals galvanized (275 g/m²).
450 mm Diameter Concertina Razor Coil (10 Meters Stretch)

Diameter: Minimum 450 mm, concertina razor coils stretched to a maximum of 10
meters.
Core Wire: 2.5 mm minimum diameter, high-tensile GI wire, heavily galvanized.
Tape Thickness: 0.5 mm, heavily galvanized.
Tape Width: 15 mm.
Barb Length: 22 mm.
Barb Spacing: 13 mm.
Clips: 5 per coil.
Space Between Coils: 90 mm.
Turns and Loops: 224 turns, 112 loops.
Galvanization: All metals galvanized (275 g/m²).
450 mm Diameter Concertina Coil Fencing System (12 Meters Stretch)

Diameter: Minimum 450 mm, concertina razor coils stretched to a maximum of 12
meters.
Core Wire: 2.5 mm minimum diameter, high-tensile GI wire, heavily galvanized.
Tape Thickness: 0.5 mm, heavily galvanized.
Tape Width: 15 mm.
Barb Length: 22 mm.
Barb Spacing: 13 mm.
Clips: 5 per coil.
Space Between Coils: 200 mm.
Turns and Loops: 112 turns, 56 loops.
Galvanization: All metals galvanized (275 g/m²).
Each of these systems can be designed to meet various temporary security and
permanent security fencing needs in perimeter protection.

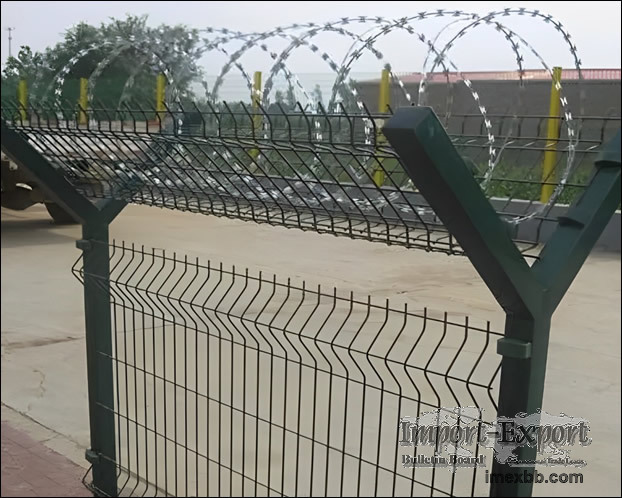

Razor wire topped wire mesh fence panels for temp security fencing uses
Double coil razor wire security fencing – This fence includes vertical green
posts supported green coated wire mesh barrier. The anti-climb mesh panel is
topped with concertina coil of razor wire with sharp barbs, providing an
additional layer of protection.

Concertina razor wire BTO-22 topped security fencing dark green coated
Single coil razor wire topped temporary security fencing- Dark green coated
steel posts and bent wave welded wire mesh designed to prevent climbing, topped
with concertina razor wire spirals for enhanced safety.

PVC Coated Welded Razor Ribbon Mesh for Guardrail Barrier
Flat welded razor wire mesh security fencing – Welded razor grid used as
reinforcement for temporary guardrails. Three features: 1, A physical barrier
due to the formidable appearance and the actual sharp barbs to deter and
prevent intrusion and climbing. 2, The design of this flattened razor wire
allows easy mounting atop fences or walls while maintaining a lower profile
than traditional spiral razor wire without compromising on safety. 3, Welded
razor ripper net can be painted into green and other colors, match the color of
the temporary fencing.
