Radial Flow Reactor Internals-Vee Wire Center Pipes

Are you looking for reliable and efficient internal components for your
radial flow reactor?

Center pipes, particularly those using Johnson-type Vee wire (wedge wire)
construction, are critical elements for the optimal performance of
recombination and isomerization reactors, as well as catalytic reforming
processes.



What is a Radial Flow Reactor Center Pipe?
In a radial flow reactor, the center pipe (also often referred to as a
central screen or center tube) is a key internal component located along the
central axis of the reactor vessel. It's typically a cylindrical structure
constructed with Vee (wedge) wire, creating a slotted screen. This screen
interacts directly with the catalyst bed.

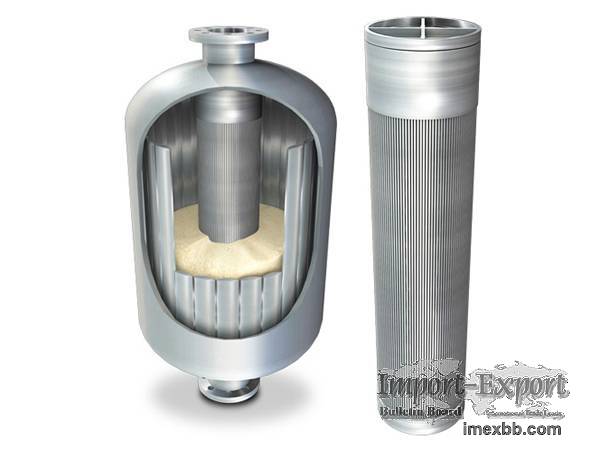

center pipe

How Does a Vee Wire Center Pipe Work?
Flow Distribution: Raw materials (feedstock) enter the reactor, flow
radially through the catalyst bed, and then are collected by the center
pipe. This radial flow design offers a significant advantage over
traditional downflow systems by:

Higher Flow Rates: Facilitates higher throughput of material.

Reduced Pressure Drop: Minimizes pressure loss across the catalyst bed,
improving efficiency.

Pressure Drop Balance: The center pipe helps distribute the flow evenly,
balancing the pressure drop across the catalyst and ceramic balls. This
helps ensure consistent reaction conditions throughout the reactor.

Filtration and Catalyst Retention: The Vee wire screen acts as a filter,
preventing catalyst fines and other particulate matter from flowing out of
the reactor with the product stream. This maintains product purity and
prevents damage to downstream equipment.

Outlet Connection: Typically, the bottom of the center pipe connects
directly to the reactor's outlet.



Why is the Center Pipe so Important?
The center pipe plays a critical role in the successful operation of the
reactor. Damage to the center pipe can lead to:

Reactor Shutdown: If the center pipe fails, it can halt the entire process,
leading to significant production losses.

Catalyst Loss: A damaged screen can allow catalyst to escape, reducing
reactor efficiency and potentially contaminating the product.

Uneven Flow: Distorted or blocked center pipes lead to channeling and
inefficient catalyst usage.



Advantages of Vee Wire Center Pipes:


High Open Area: The wedge wire design maximizes the open area of the screen,
minimizing hydraulic resistance and allowing for high flow rates.

Non-Clogging Design: The unique profile of the Vee wire prevents particles
from becoming trapped in the slots, ensuring continuous and efficient
operation.

Durable Construction: Vee wire screens are robust and resistant to corrosion
and abrasion, ensuring long service life.

Precise Slot Control: Accurate slot sizing prevents catalyst leakage while
maintaining optimal flow.

Customization: Center pipes can be manufactured to specific height and
diameter requirements to fit any reactor design.

Dismountable Designs: Some designs allow for easier installation and removal
through reactor hatches.

Tight Tolerances: Strict control over verticality and straightness ensures
even catalyst distribution and prevents uneven pressure drop. This ensures
optimal catalytic reaction performance.



Catalytic Reforming Applications:
In catalytic reforming, especially continuous reforming technology, the
center pipe is essential. The perpendicularity (verticality) of the center
pipe is critical for even catalyst distribution. Uneven distribution leads
to variations in pressure drop and flow rates across the catalyst bed,
negatively impacting the reforming process.



We Can Help You with Custom Center Pipe Solutions

Minimum Order: 1 square metres

Radial Flow Reactor Internals-Vee Wire Center Pipes
Enlarge Click to Enlarge
