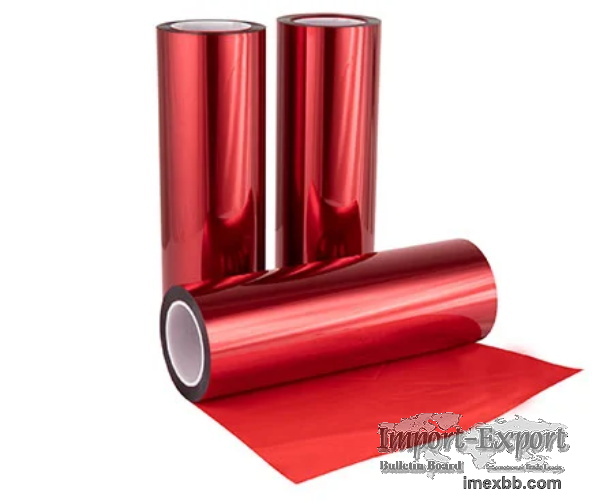

R603D Red PET Film

High transparency and gloss: Red translucent film has high transparency and
good gloss, which can improve the product grade and add market value.

Good ink adhesion: The surface of red translucent plastic film has good
adhesion to various printing inks, which is suitable for various high-end
printing processes.

High mechanical strength: Red PET Film has good tensile strength and excellent
toughness, which can meet the requirements of product processing, printing and
lamination.

Good chemical resistance: Red PET Film has good chemical resistance, which can
resist the corrosion of some chemicals and prolong the service life of the
product.

High-temperature resistance: Red PET Film can withstand higher temperatures and
has good thermal stability, which is beneficial to the long-term storage of
products.

Good dimensional stability: Red PET Film has good dimensional stability, which
can maintain the accuracy of the product during processing and prolong its
service life.

Specifications of R603D Red PET Film
Thickness Width Roll Core Inner Diameter
25um~100um Can Be Customized Small:76mm Large: 152mm

Note:
Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.

R603D Red PET Film Typical Physical Performance
Project Unit Detection Value Detection Method
Thickness um 25 36 50 75 100
GB/T13542.2
Mean Thickness Deviation um ±2% ±3%
Tensile Strength MD Mpa MD≥150 MD≥150 GB/T13542.2
TD Mpa TD≥170 TD≥170
Breaking Elongation MD % 60≤MD≤180 70≤MD≤180
GB/T13542.2
TD % 60≤TD≤180 70≤TD≤180
Thermal Shrinkage 150'C / 30 min MD % 0≤MD≤1.5
0≤MD≤1.3 GB/T13542.2
TD % -0.3≤TD≤0.3 -0.3≤TD≤0.3
Transmittance % 47~53 33~39 25~30 20~26 14~20
GB/T2410
The Fog Degree % 0.5~1.6 0.5~1.6 0.5~1.6 0.5~1.6 0.5~1.6
Wetting Tension have mN/m ≥56 GB/T14216
Non mN/m ≥38

Note:

1. MD means longitudinal tensile, and TD means transverse tensile.

2. The above are typical values instead of guarantee values. Typical values can
be adapted according to customers' requirements.

Applications of R603D Red PET Film

Suitable for bright red indoor decoration, as a base material, printing, and
other applications.

If you want to buy high quality polyethylene terephthalate film, please visit
our website.

Minimum Order: 1000 pieces
