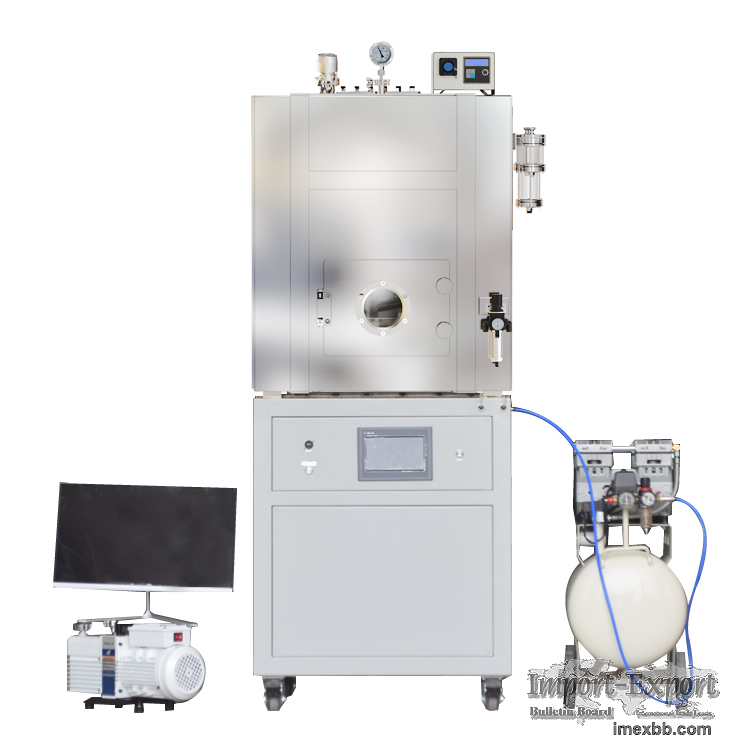

R&D type vacuum spray pyrolysis nanoparticle coating machine

Spray pyrolysis film formation method is to spray the solution on a heated base
after atomizing the solution, and then obtain the desired material structure on the
substrate. This material preparation method is particularly suitable for depositing
oxides, and has a long history in the application of preparing transparent
electrodes. This method is now widely used in the preparation of perovskite solar
cells.

This equipment adds a multi-nozzle coordination system and a vacuum system on the
basis of ordinary pyrolysis spraying. It is equipped with three high-pressure gas-
driven atomizing nozzles and matching anti-dripping baffles. It can work together
through the touch screen to make Multi-layer film.

The vacuum system can provide a basic vacuum of 5000Pa, and can be sprayed and
pyrolyzed under a protective gas environment after being filled with an inert gas.
In addition, the instrument also has a high-precision peristaltic pump and a
precision-programmed stepping motor moving mechanism. At the same time, the
substrate temperature can also be controlled to meet your various test needs.

Minimum Order: 1 sets
