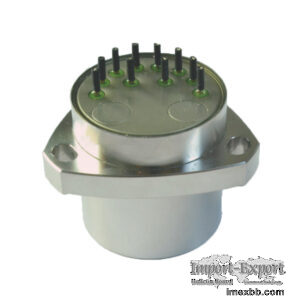

Quartz Accelerometer for Oil and Gas

ER-QA-03D (-55~180℃):
1. High-Temp 180℃;
2. Size Ф25×21mm;
3. Anti-shock 500-1000g 0.5ms.
Introduction
ER-QA-03D Anti-shock and High-Temperature Quartz Accelerometer for oil and gas
with high-temp, strong anti-shock and high reliability performance, not only
it can be used in aviation and aerospace inertial tests but also can be used
in both static and dynamic acceleration measurements. In addition, the
accelerometer uses a temperature sensor, which the operator can use to
compensate bias and scale factor parameters to reduce the influence of
temperature factors.

The products are widely used for aerospace inertial navigation, guidance and
control, industrial measurement and for measurement-while-drilling (MWD) in oil
and gas fields.The problem of azimuth orientation in MWD technology is
particularly prominent. The high temperature environment, accompanied by strong
vibration shock, is a difficult problem to overcome in MWD. ER-QA-03D is
capable of operating at -55~180 ° C, with an input range of ±30g, bias
repeatability <50μg, and scale coefficient repeatability <80 ppm.
Applications
MWD tools
LWD tools
Inertial navigation
Oil well logging
Gyro inclinometer
Guidance and control

Minimum Order: 1 sets
