QSFPDD-800G-DAC2.5M 800G QSFPDD to QSFPDD (Direct Attach Cable) Cables (Pas

Product Description
IOS-D#80108-2.5, iQSFPDD-800G-DAC2.5M, 800G QSFPDD to QSFPDD (Direct Attach
Cable) Cables (Passive) 2.5M

IOS-D#80108-2.5

800Gbase QSFPDD to QSFPDD DAC (Direct Attach Cable) Cables (Passive) 2.5M
QSFPDD-800G-DAC2.5M 800G QSFPDD to QSFPDD (Direct Attach Cable) Cables
(Passive) 2.5M 0


iQSFPDD-800G-DAC2.5M, is 2.5M of 800Gbase QSFPDD to QSFPDD DAC (Direct
Attach Cable) Cables (Passive)

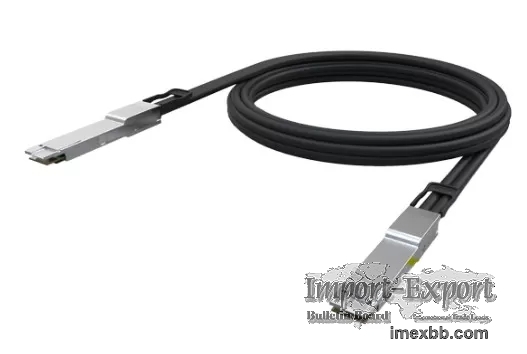

This 800G Passive DAC cable is equiped with QSFP-DD package at both sides.
The max length for 800Gbase QSFP-DD to QSFP-DD DAC is 2.5-meter. For
standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths
than our standard lengths welcome to contact us for customed. x in Part
Number stands for any data from 0.3m to 3m.

Features and Benefits

Compliant with QSFP-DD800 MSA Standard
Compliant with IEEE 802.3ck (800GBASE-CR8) Standard
Compliant with IEEE 802.3cd (400GBASE-CR8) Standard
Compliant with IEEE 802.3bj (200GBASE-CR8) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate: 112G PAM-4 Per Channel Total Bandwidth 800 Gbps (8 Lane 112G PAM-
4)
Low Power Consumption
Management Interface follows CMIS Standard and can be customized
Excellent SI Performance
Custom Colors For Pull Tab


Market and Application

High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Data Center and Enterprise Storage Systems
Telecommunication Equipment
800Gbps Ethernet
InfiniBand™ 8X NDR/HDR/EDR



Ordering Information:


iQSFPDD-800G-DAC0.5M, 800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables
(Passive) 0.5M
iQSFPDD-800G-DAC1M, 800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables
(Passive) 1M
iQSFPDD-800G-DAC1.5M, 800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables
(Passive) 1.5M
iQSFPDD-800G-DAC2M, 800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables
(Passive) 2M
iQSFPDD-800G-DAC2.5M, 800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables
(Passive) 2.5M
