Contact: Emanuela Merlo
Company: SATEP Srl
viale delle Industrie 38
Bernareggio (MB) 20881
Italy
Phone: +39039627661
E-Mail: Send Inquiry Member for over 2 years
Date/Time:  11/2/22 12:44 GMT

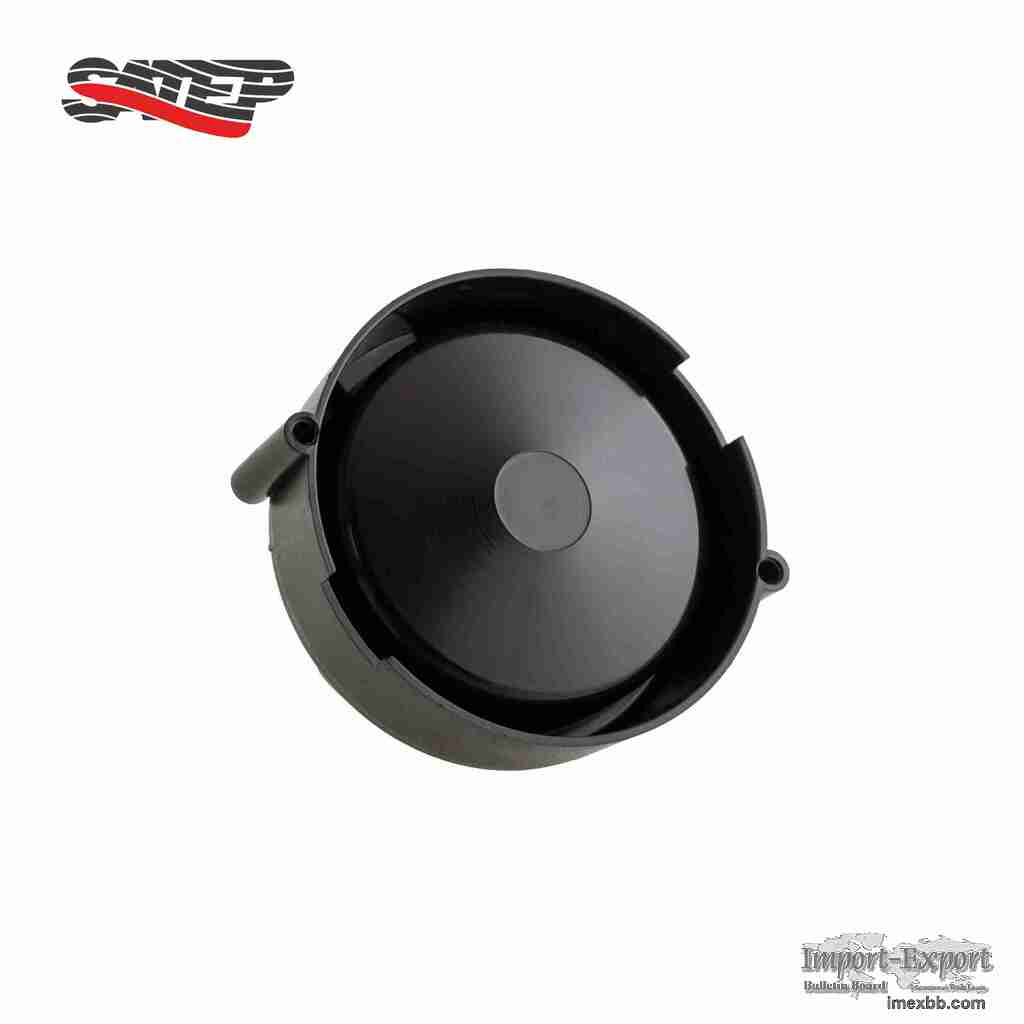

PZ011 by SATEP - Alarm piezo siren made in Italy

PZ011 by SATEP - Alarm piezo siren suitable for fire & intrusion and
industrial applications. High performance and low consumption, 104dB, Made
in Italy.

Model Number: PZ011
Type: Siren
Place of Origin: Italy
Brand Name: SATEP
Material: Acrylonitrile Butadiene Styrene (ABS)
Color: Black
Packaging: Cardboard box
Technology: Piezo
Operating Temperature: -20°C ~ 70°C
Mounting Type: Surface Mount
Termination: Solder Tabs
Size / Dimension: diameter 78 mm
Height - Seated (Max): 25 mm
Voltage - Input (Max): 150 Vp-p
Impedance: 500 ohm
Frequency Range: 2800-6000 Hz
Efficiency - Type: Sound Pressure Level (SPL)/60Vpp/1m
Power - Rated: 104dB (4000 Hz)
Net weight: 55g
Application: Electrical Appliance
OEM ODM: 1000 pcs.

IMPORTANT:
The product is to be personalized and supplemented with your electronic and
electric components.

PZ011 by SATEP - Alarm piezo siren made in Italy
Enlarge Click to Enlarge
