PVC Tube Making Machine, PVC Pipe Extruder, conical twin screw extruder

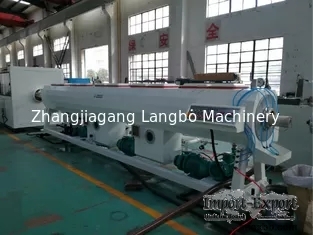

PVC pipe extrusion lines are applied for manufacturing PVC pipes with
different pressure classes as water supplying and drainage needed in field
of agriculture, architecture, telecom communication, etc..

The complete extrusion consists of following items:

Conical twin screw extruder
Die head. Due to the diameter, it can be single, double and four die head
Vacuum tank: due to diameter, it can be designing of single, double vacuum
chambers
Haul-offs: due to diameter, it can be designing of double, three, four, six,
eight caterpillars
Cutter: due to diameter, it can be designing of saw cutter or planetary
cutter
Tipping chute
PVC Tube Making Machine, PVC Pipe Extruder, conical twin screw extruder 0



SPECIFICATIONS:

MODEL Pipe diameter (mm) Extruder Extruder power (kw)
Capacity (kg/hr)
LB-32A 16-32 (four) SJZ65/132 37 AC 250
LB-32B 16-32 (four) SJZ80/156 55 AC 350
LB-50A 16-50 SJZ45/90 15 AC 100
LB-50B 16-50 (double) SJZ51/105 18.5 AC 150
LB-50C 16-50 (double) SJZ65/132 37 AC 250
LB-63A 16-63 SJZ51/105 18.5 AC 150
LB-63B 16-63(double) SJZ65/132 37 AC 250
LB-160 50-160 SJZ65/132 37 AC 250
LB-250 63-250 SJZ65/132 37 AC 250
LB-315 110-315 SJZ80/156 55 AC 350
LB-630 315-630 SJZ92/188 110 DC 800
LB-800 560-800 SJZ105/216 160 DC 1100
