PVC Coated Nettings

Wire Netting Galvanized Plastic Coated, in Hexagon, Rectangular, Square Hole
Netting PVC Coated is a light type steel mesh supplied in rolls.
Mesh types: Hexagon, rectangular, square
PVC color: Black, green.

Main Products Delivered
Wire Netting of Hexagonal MeshHexagon Mesh Netting Galvanized and Black PVC
Coated
Main Specifications:
Mesh 3/4", wire diameter 0.812 /1.4 (Hexagon), 200g/m2 + 1% uv
Mesh 1", wire diameter 16 gauge
Roll width:4', 5', 6', 7'.
Roll length: 150'

Netting PVC Coated in Rectangular Mesh
Wire Gauge : 0.812mm
Zinc Coat Galvanizing: 200g/m2 + 1.0% UV Stabilizer
Diameter Of Wire After Coated by PVC : 1.4mm

Rectangular Mesh Netting PVC Coated
Main Specifications:
Mesh: 1"X1/2"
Wire diameter: 0.812/1.4 (for rectangular hole)
Roll width: 1’, 3’, 4’, 6’
Roll length: 82’

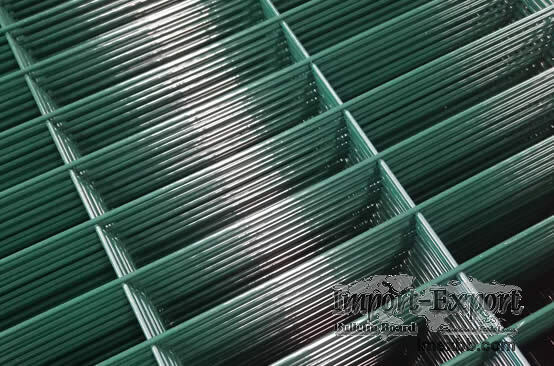

Netting of Square Mesh
Diameter Of Wire After Coated: 1.2 mm for Square Net
Galvanized square mesh wire net pvc coated
Main Specifications:
Mesh: 12x12mm, Wire diameter 0.812/1.2 (for Square), zinc coating 200g/m2 + 1%
uv, in 5’x 150’ rolls
Mesh: 12x12mm, Wire diameter 0.812/1.2 (for Square), zinc coating 200g/m2 + 1%
uv, in 6’x 150’ rolls
Mesh: 12x12mm, Wire diameter 0.812/1.2 (for Square), zinc coating 200g/m2 + 1%
uv, in 7’x 150’ rolls
