PTO Shaft Replacement Of Weasler 6 Series

PTO Shaft Replacement Of Weasler 6 Series

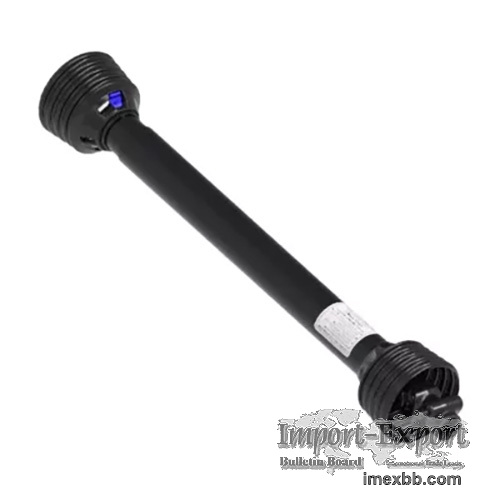

Ever-power's High-Performance PTO drive shaft is one of the best drive shaft
option in the lawn, agriculture and industry. Ever-power PTO drive shaft
comprises a total unit that includes the tractor all the way to the
implement. They are made for long-term heavy-duty usage and can meet the
demands of large contractors and farms. Every the power PTO drive shaft is
able to replace the Weasler brand 6 Series.

Advantages Of Ever-power PTO shaft
Adjustability of design (cutting in length) ability.
It is interchangeable with many models from competitors.
Spline and square shafts are both available.
The simple locking mechanism permits quick and simple assembly or
disassembly by using simple tools, such as coins, keys or screwdrivers.
The extended lubrication electronic kit helps reduce downtime through
intervals between lubrication of 50 and 250
Three lip seals with high temperatures will better hold grease.
Customer-specific engineering and sales support.
Design features
It is easy to lock the protection system: offer all-encompassing coverage at
the highest angle 360 degrees of friction welding of the protective cover,
black ultraviolet, and ozone resistance. the cold-weather impact rating is
-35 degrees Celsius which is more than the safety standards of all relevant
standards as well as the disassembly the installation is quick and easy.
-Yoke: interchangeable with other Ever-power yokes as well as conventional
yokes sold that are available, with cast iron collars that have holes to
stop debris from getting inside.
Bearing kit and crossover High power and torque capacities, as well as
longer life span. It is made from high-quality steel that increases the
strength. The kit is able to be upgraded or swapped using the digital kit.
The same design of components is used in Ever-power's home and metric lines.

6 Series PTO Shaft Parts
16Hp@540rpm
30Hp@1000rpm

Part Number Cup
Diameter Length
(B) Snap
Ring Series
1-1475 0.9687 1.453 Inside L6
6 Series Square Or Rectangular Parts
Bar Yoke # Solid Shaft OD Spec Square Sleeve Tube Yoke
Shield Shield Bearing Length Shield Bearing ID
69-0648 56-1600 48 1.83
69-0648 56-0600 48 1.50
900-2548 920-0260/ *0415169 48 1.375
6-Series Splined Parts
Bar Yoke # Splined Shaft OD Spec Splined Sleeve Tube Yoke
302-0600 404-1615 1.00-15 1.00-15 510-0615 703-0600
301-0600 404-1615 1.00-15 1.00-15 510-0600 702-0600
6 Series Quick Connect Yokes
Part Number Diameter No of Splines
101-0610
0.981 10
105-0615 1.00" 15
100-0621 1.375 21
100-0606 1.375 6
Six Series Clamp Yokes
Part Number Diameter Number of Splines Bore c-e Length
Clamp Type Notes
Six series Clamp Yokes with Spline Clamp Yokes
06091-1461 .875 20 1.4 2.53 double bolt Splined
807-0615 1.00 15 1.2" 2.5" Splined
6 / 0600 Round Clamp Yokes
807-0614 0.875 .187 round
06091-2664 0.875 0.188 round
807-0616 1.00 0.250 round
6 Series Straight Bores
Six Series Round Bore
Part Number Bore Key (c-e) Length Bore Length
806-0610 0.625 .187
806-0612 0.750 0.187 / 0.250
806-0613 0.812 0.187 / 0.250
806-0614 0.875 0.187 / 0.250
800-0615 0.9375 0.250 2.5
806-0616 1.00 0.187 / 0.250 2.5 1.125
806-0618 1.125 0.250 / 0.312
806-0619 1.187 0.250 / 0.312
806-0620 1.250 0.250 / 0.312 2.5
Six Series Splined Bores
Part Number Diameter Splines
06011-1000 0.875 20
06011-3255 0.875 13
06011-3258 0.875 20
801-0618 1.125 6
801-0606 1.375 6
301-0600 Splined 1.00
6 Series HEX Bores
Part Number Diameter
16-6303 0.875
Six Series Yokes
6-0600 Series H Yokes
Part Number Length
16-8600 2.50"
06361-1071 2.625
6-0600 Series Flanges Yokes
6 / 0600 Series Shear Bolt Yokes
6-06-0600 series PTO Slip Yokes
6-06-0600 square Slip Yokes
Part Number Bore Bore Length
c-e Length
16-6176 0.75 5.5
808-0612 0.750 5.50
813-0600 0.750x.875 Rect 5.50
16-6178 0.875 5.5
808-0614 0.875 5.50
Six series (CAT 1) 50-degree Constant Velocity
Tube Yoke (1.5x.065) H Yoke
06351-3271 06361-1071
The universal joint with constant velocity (CV)allows smooth machine
operation over wide ranges of motion. The joints permit machines to be built
using the shaft input in its optimal position for operation, yet allowing
the user to move according to the need. The CV provides continuous power
through self-canceling torque as well as speed variations usually found in
single cardan-type universal joints.

0600 (CAT1) 50 Grad CV End Yokes
Part Number Bore Type
06771-1020 1.00-.250 Straight round
06351-3265 1.00x15 coller QD
06771-1008 1.25-.250 Straight round
06351-1311 1.375-6 spline coller QD
Agricultural Gearboxes and PTO Shaft
Agriculture equipment is comprised of a variety in PTO shafts. Each shaft is
connected with two yokes and can rotate between 500 and 1,000 rpm. Safety
shields are typically put on both ends of the PTO shaft to shield the
operator. These shields can also be present in agricultural and tractor
tools, to ensure maximal effectiveness. Internal Yokes is also a great way
to increase security.

It is an farm gearbox is designed to adjust the speed of output of an PTO
drive shaft. It can be utilized as a decreasing or an increasing ratio
gearbox. In the gearbox with a lower ratio it lowers its PTO shaft's speed
from 1,000 RPM to 540 rpm permitting you to use equipment that is designed
to operate at the 540 rpm range. In contrast the gearbox with an increased
ratio will increase speeds of the PTO shaft from 540 rpm to 1,000 rpm.

As a well-established mechanical transmission parts provider We also offer
PTO Shaft accessories like PTO end yoke Overrunning clutch for PTO, PTO
drive shaft universal joint as well as other. Contact us now for more
information!

Minimum Order: 50 pieces
