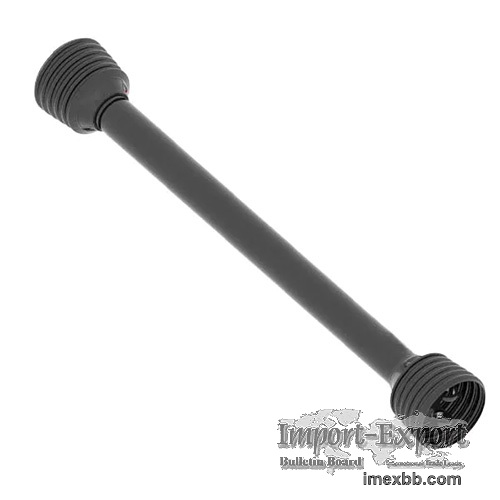

PTO Shaft Replacement of Weasler 12 Series PTO Shaft

PTO Shaft Replacement for Weasler 12 Series

Specifications for 12 series shafts for PTO
3/8''-6 Spline Spring-Lok Tractor Yoke
Requires Cross Kit.
Requires Implementation Yoke.
19HP @ 540 RPM
48' Compressed Length (Dim. A)
Bore 1 Minus End Yoke
Bore 2 Minus End Yoke
Compressed (Closed) Length 41.00 inches 1041 mm
Compressed Overall Length 49.12 inches 1248 millimeters
Connection 1 ARMS YOKE
Connection 2 ARMS YOKE
Extended Length 69.75 inches 1772 mm
Extended Overall Length 77.87 inches 1978 mm
HP@1000RPM 29 HP 22 Kilowatts
HP@540RPM 19 HP 14 Kilowatts
Length 49.12 inches 1248 millimeters
Outside Diameter 6.00 inches 152 millimeters
Dimensions of Shipping 41" L 6" H 6" W The dimensions are 104cm L x 15cm H
and 15cm W
Shipping Volume 1476.00 in3 24187 cm3
Shipping Weight 23.70 pounds 11 kilograms
Weight 23.70 pounds 11 kilograms
12 Series PTO Shaft Parts
Part Number Cup
Diameter Length
(B) Snap
Ring Series Type
1-1275 1.062 1.812 Inside L12 Ag
16Hp@540rpm
30Hp@1000rpm 200-1200 1.062 1.812 Inside L12 Ag
12 Series Square Or Rectangular Parts
Bar Yoke # Solid Shaft OD Spec Square Sleeve Tube Yoke
Shield Shield Bearing Length Shield Bearing ID
69-1248 56-2000 60 2.050

Minimum Order: 50 pieces
