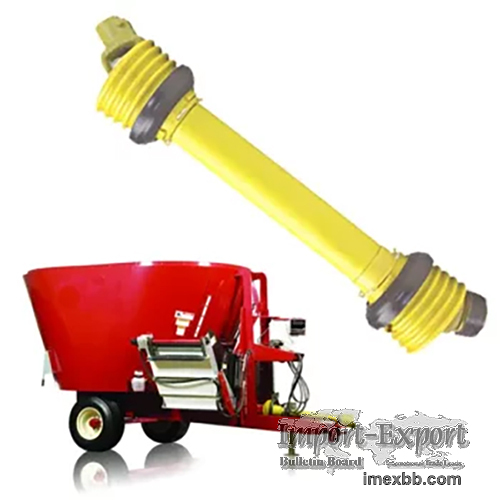

PTO Shaft for Feed Mixers

PTO Shaft to fit Single Auger Twin Auger and the Total Mix
PTO shaft used for Jaylor Vertical Mixers TMR

The device transmits motion in a single direction as the tractor drives the
implement. In the stop phase, the tractor PTO shaft is disengaged, and the
machine moved. The transmission is cut off.

This device assists in operating machinery that have high-speed inertia due
to when the stop phase is in place this tractor's PTO is removed from the
machine being driven.

Original Equipment is listed on the left as Size 6, or 8 copy of BYP. )Based
on HP

at 60 HP or lower = CAT4 = Size 6. ******* greater than 60 HP = CAT5 = Size
8.

Jaylor provides Constant Velocity shafts or standard PTO

We also supply all components for the feed mixer.

MAINSHAFT CVO: Constant Velocity
Category Series Tractor
Tractors that have 1.375"-6 PTO 4 (60 HP@540 RPM) S6 1.375-6
5 (90 HP@540 RPM) S8 1.375-6
Tractors that have 1.375"-21 PTO 4 (60 HP@540 RPM) S6
1.375-21
5 (90 HP@540 RPM) S8 1.375-21
Tractors that have 1.750"-20 PTO 4 (60 HP@540 RPM) S6
1.750-20
5 (90 HP@540 RPM) S8 1.750-20
Shear Bolt Yokes:
Part Number Model Diameter No of Splines C-to-bolt Bolt
c-e Length Torque
Size 6 Shear Bolt Yokes 6060H3702R LB 1.375 21 55
M10x50 134 2700nm
BTB06215510A LB 1.375 21 55 M10 4.8 2700nm
6060H0302R LB 1.375 6 55 M10x50 134 2700nm
BTB06385510A SB 1.375 6 55 M10 2500nm
BTB06205510A SB 1.750 20 55 M10 2500nm
BTB06345510A LB 1.750 6 55 M10 4.8
6060H3802R LB 1.750 20 55 M10x50 134 2700nm
6060H3707R LB 1.750 27 55 M10x50 2700nm
6060H0402R LB 1.750 6 55 M10x50 134 2700nm
Size 8 Shear Bolt Yokes 6060M3702R LB 1.375 21 50mm M12
143mm 3800nm
BTB08215712A LB 1.375 21 M12 pin QD 3500nm
6060M0302R LB 1.375 6 50mm M12 143mm 3800nm
6060M0307R LB 1.375 6 50mm M12 143mm 3500nm
BTB08385712A LB 1.375 6 M12 pin QD 3500nm
6060M3802R LB 1.750 20 50mm M12 143mm 3800nm
BTB08205712A LB 1.750 20 M12 pin QD 3500nm
6060M3902R LB 1.750 27 M12
6060M0403R LB 1.750 6 50mm M12 143mm 3800nm
BTB08345712A LB 1.750 6 M12 pin QD 3500nm
PARTS OF THE PTO SHAFTPTO Shaft for Jaylor Vertical TMR Feed Mixers
It's crucial to understand the dimensions, measurement horsepower,
dimensions, and other PTO shaft components in order to select the correct
PTO shaft that will fit in your equipment. Although the U-joints and yokes
are essential for their function however, the safety chains as well as the
shield are the most important components that make up the PTO shaft, which
will help ensure your safety during operation.

Internal Yoke: There are two of them, situated on both sides of the PTO
shaft, namely the implement and the tractor. The welded end is attached onto
the drive side.
Universal Joint- There are two at each end of the PTO shaft.
External Yoke - There are two on both sides on the PTO shaft. It is an "Y"
design to connect to the U-joint as well as an opening for females.
Safety Chains - The chains anchor the PTO shaft onto the machine and also
the tractor.
Safety ShieldCones located at both the ends.
Size is the most important aspect of the PTO shaft
Whatever task you'll use the PTO shaft for it is essential to are using the
right dimension. The manufacturer will provide length recommendations to
help to get an idea. When measuring the length of a PTO shaft, you can use
the tape measure and take measurements from the outside of each yoke in
order to get the length closed. The size of the series should be in line to
the horsepower that your tractor is equipped with. Two different speeds are
employed typically when using tractor PTO shafts, those of 540 (type one)
and the 1000 (type three) RPM.

Minimum Order: 50 pieces
