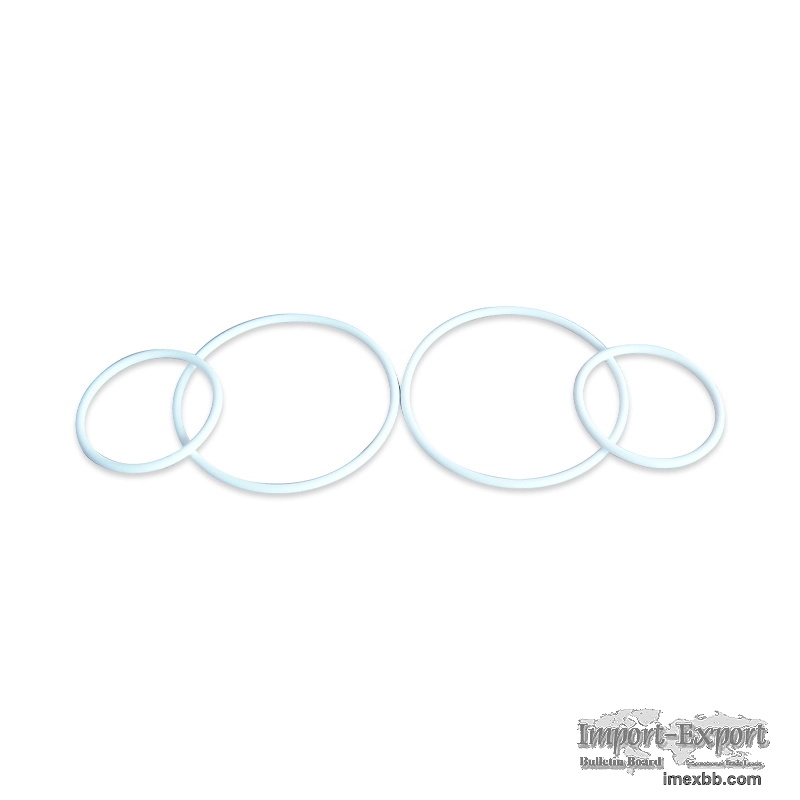

PTFE Ring

PTFE O Ring
PTFE sealing products not only can seal oil fluid, can also seal water a class
of fluids, including strong acid, strong alkali, strong corrosion strong
chemical fluids and a variety of solvents, it can also seal a variety of gases,
to adapt to dry friction occasions. None of these rubber seals can be achieved.

PTFE seal has simple structure, shape and size can be interchangeable with
rubber seal, easy installation and maintenance.

The Technical Indexes of PTFE Seal Ring, PTFE Wear Ring
Type Size
DN15 22*51*3
DN20 27*61*3
DN25 34*71*3
DN32 43*82*3
DN40 49*92*3
DN50 61*107*3
DN65 77*127*3
DN80 89*142*3
DN100 115*162*3
DN125 141*192*3
DN150 169*218*3
DN200 220*273*3
DN250 273*329*3
DN300 325*384*3
DN350 377*444*3
DN400 426*495*3
DN450 480*555*3
DN500 530*617*3
DN600 630*734*3
DN700 720*804*3
DN800 820*911*3
DN900 920*1011*3
DN1000 1020*1128*3

Specification of Bronze Filled PTFE Wear Ring
Item Data Unit
Density 2.1-2.2 g/cm³
Tensile strength 25-45 Mpa
Elongation at break 200-350 %
Compression strength 24 Mpa
Shore D hardness 50-60
Friction coefficient 0.01

Normally, PTFE ring and PTFE gasket can be together called PTFE sealing
product, usually, the difference is the thickness above 5mm, it can be called
PTFE gasket, below 5mm, it can be called PTFE ring. The special size can be
customized according customer requirement.

Features of PTFE Ring
Temperature resistance: It is able to work stably between -180°C to +260°C.

Excellent chemical corrosion resistance: Applicable medium includes oil, acid
solution and almost all chemical materials.

Excellent non-sticky property: With low friction coefficient it easier to
remove those resin, dopes, oil and other sticky things.

Anti-aging, weathering resistance.

Excellent insulation property.

Filled material: Filled PTFE products has more outstanding performance by
adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber,
MOS2, PEEK, PI, POB BaSO₄, SiO₂, glass bead, polyamide.

As one of ptfe o ring suppliers, we will do our best to meet all the needs of
customers.

Xinrui Plastic Technology Co., Ltd specializes in precision engineering
plastics, delivering high-quality solutions for a wide range of industries.
With advanced technology and expertise, we provide customized industrial
plastic products that meet the stringent requirements of our customers.

We can also offer sorts of uhmwpe parts for sale, if you are interested, please
leave us a message.
