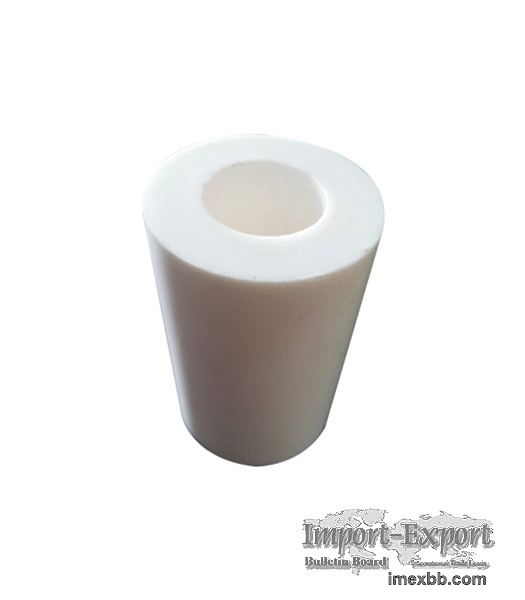

PTFE Molded Tube

PTFE rods and tubes are sintered with PTFE suspension resin after moulding or
hydraulic pressing, or extruded with PTFE presintered disperse resin by
plunger. PTFE is commonly known as the king of plastics. It has many excellent
features.

PTFE molded parts have corrosive medium fluid piping, insulating sheathing and
drive shaft packing. Conveying high temperature corrosive gas, liquid, which is
other pipelines can not be replaced. It can be used to connect graphite,
ceramic or glass pipes with lower machinery, to be used as feed and discharge
pipes for tank cars, storage tanks, containers or reaction kettle, to carry out
pipe dislocation connection or to balance pipe displacement and size change
caused by climate or other reasons, or to eliminate high-frequency mechanical
vibration. In special occasions can also be used as tubular reactor or heat
exchanger.

Specification of PTFE Molded Tube
Product name Speciations(mm) Remarks
Diameter Length
PTFE pipe Molded tube Outer: 20-600 100-250
Hydraulic tube Outer: 50-300 500-1000 Diameter needs machine
processing
Extruded tube Outer: 30-200 <2000 the length can be customized as
customer's requirement

The Technical Indexes of PTFE Molded Tube
Properties The implementation of standards The technical performance index
Remarks
The proportion of Tensile strength(Mpa) Crack
elongation(%)
Molded rods ZBG33003 SFB-1 2.10-2.30 ≥14 ≥140 QB/T 3626-1999
Light industry standard
Molded pipe Company standard 2.15-2.25 ≥15 ≥150
Hydraulic rod/tube Company standard 2.10-2.20 ≥14 ≥150
Extrusion rods/tube Company standard 2.10-2.20 ≥15 ≥150

Note: If the customer has special requirements for performance indicators, the
parties shall decide through negotiation.

Usage of PTFE Molded Tube
Can be processed into a variety of seals, gaskets.

Electrical insulation electrical equipment parts.

Can also make a variety of chemical anti-corrosion, high temperature resistance
or anti-stick parts or products.

We can offer sorts of industrial plastic product for sale, if you have needs to
buy polytetrafluoroethylene products, please leave us a message.
