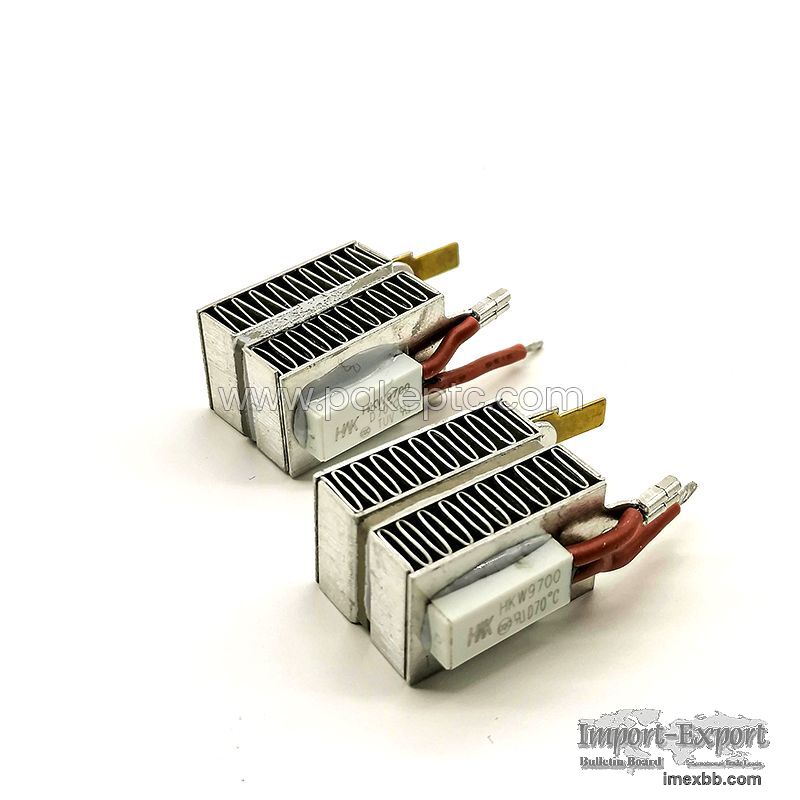

PTC Heater for Sweeper

PTC Heater for Sweeper
Attribute
Temperature:Self-control
Reliability:High Reliability
Application:Home Appliance
Product Specification:Heater
Product Description
This product is designed for electric sweeper. Equipped with self-regulating
PTC, it can automatically control the temperature. It is less power aging and
has longer service life.

Overview
● After-sales Service : Video technical support, Online support
● Application: Sweeper
● Advantages: Fast heating, good withstand voltage and reliability
● MOQ: 500 sets
● Port：Shanghai

Product Feature
● Self-regulation PTC elements, automatic temperature control
● Less power aging
● Power range is from 20-100W
●Micro thermostat will turn off when there is no air flow

Applications of PTC Heaters in Various Industries
1.Transportation: PTC heaters bring a wide variety of benefits to the
automotive and aerospace industries. These systems provide compact, lightweight
means to heat the interiors of planes and vehicles. Anything from seat and
steering wheel heaters to plane de-icers will likely use a PTC heater.
2.Healthcare: Because PTC heaters’ high safety records, medical workers
frequently turn to them for a variety of applications. PTC heaters work
especially well as under-body heating systems on operating tables, gurneys, and
beds.
3.Recreational: Outdoor clothing manufacturers can weave PTC heaters into their
clothing. Because of their ability to run open-loop (without the use of
electronic controls), jackets, vests, socks, and gloves can all incorporate PTC
heaters.
4.Food and beverage: PTC heaters can keep foods and fluids at consistent
temperatures while they’re being transported or stored for later use. These
systems appear at many stages of the food processing and distribution process—
processing plants, food transportation, and restaurants all benefit from PTC
heaters.
5.Public spaces: PTC heaters provide efficient, portable methods to heat
outdoor venues such as restaurant patios, stadiums, and convention centers.
Because of their light weight and energy efficiency, they can be moved and
repositioned as needs and weather conditions change.

Technical data
No. Model Dimension (mm) P (W) V (VAC)
1 MZFR-D-25W-20VDC 25×21.3×15 25 20 VDC
2 MZFR-D-50W-21.6VDC 25×25.8×15 50 21.6VDC
3 MZFR-D-30W-26VDC 25×21.3×15 30 26VDC
4 MZFR-D-50W-220VAC 42×24.6×15 50 220VAC
5 MZFR-D-50W-110VAC 42×24.6×15 50 110VAC

Click to Enlarge
