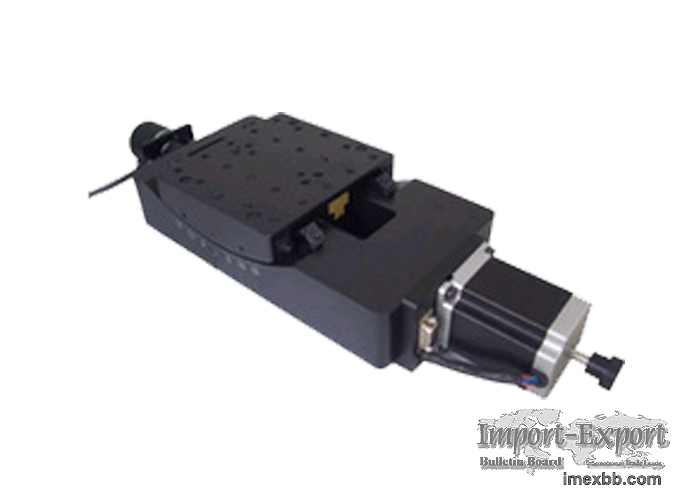

PT-GD306 Motorized Goniometer Stage, Electric Goniometer Platform

Specification:


Item Number: PT-GD306

Rotation Range: ±15°

Platform: 100mm × 130mm

Drive Mechanism: Worm Gear

Travel Guide: Crossed Roller Bearing

Worm Gear Ratio: 304 : 1

Height of Rotation Stage: 120 mm±0.2 mm

Stepper Motor (1.8°): SST57D2121 - Stepping Motor with 2-Phases & 1.8° of
Step Angle

Material – Finish: Aluminum Alloy - Black-Anodized

Load Capacity: 15Kg

Weight: 9kg

Accuracy Specifications

Design Resolution: ≈0.005°≈18″(Non-MS Driver); ≈1″(20MS Drive)

Rotation Center Deflection Accuracy: 0.03 mm

Velocity: 10°/sec

Repeatability: ±3”

Absolute Accuracy: ±8”

Backlash: ±3”

Lost Motion: 2″

Minimum Order: 1 pieces
