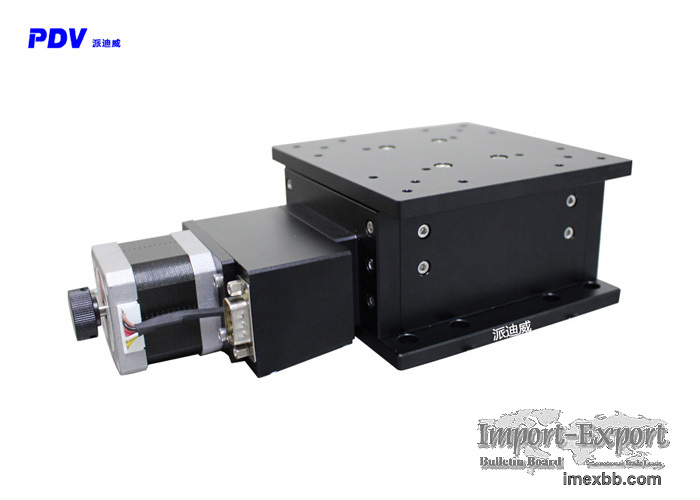

PT-GD120 Electric wedge lifting platform Motorized Lab Jacks Table size 120

Specification:
Product parameters:

Product parameter PT-GD120
Structure description Table size 120*120
Guide form Cross ball guide
Driving mechanism Wedge structure
Triangular thread rod (lead M8*1mm)
Journey 20mm
Bulk material Aluminium alloy
Surface treatment Anodized black
weight ≈4kg
Precision description Stepper motor (1.8°) SST57D2121
Central load 5kg
Adjustment amount ≥7.5μ（No segmentation）
≥0.375（20 segmentation）
speed ≤2mm/sec
Repeated positioning accuracy 5μm
Absolute positioning accuracy 25um
flatness 30um
flyback 3μ
Drop step 2μ
