PT-01PG Precision optical Table Vibration Isolation Platform Cellular Platf

Specification:
Specification

Length-Widt , h-Height

Note

600x600x80

600-600-800

4 Support, M6 screw hole distance 25mm

750x750x80

750-750-800

4 Support, M6 screw hole distance 25mm

900x600x80

900-600-800

4 Support, M6 screw hole distance 25mm

1200x800x100

1200-800-800

4 Support, M6 screw hole distance 25mm

1500x1000x100

1500-1000-800
,
4 Support, M6 screw hole distance 25mm

1800x1200x150

1800-1200-800
,
4 Support, M6 screw hole distance 25mm

2000x1000x150

2000-1000-800
,
4 Support, M6 screw hole distance 25mm

2000x1200x150

2000-1200-800
,
4 Support, M6 screw hole distance 25mm

2000x1500x150

2000-1500-800
,
4 Support, M6 screw hole distance 25mm

2400x1200x200

2400-1200-800
,
4 Support, M6 screw hole distance 25mm

2400x1500x200

2400-1500-800
,
4 Support, M6 screw hole distance 25mm

3000x1000x250

3000-1000-800
,
6 Support, M6 screw hole spacing 50mm

3000x1200x250

3000-1200-800
,
6 Support, M6 screw hole spacing 50mm

3000x1500x250

3000-1500-800
,
6 Support, M6 screw hole spacing 50mm

3500x1200x250

3500-1200-800
,
6 Support, M6 screw hole spacing 50mm

3500x1500x250

3500-1500-800
,
6 Support, M6 screw hole spacing 50mm

4000x1500x250

4000-1500-800
,
6 Support, M6 screw hole spacing 50mm

4500x1500x300

4500-1500-800
,
6 Support, M6 screw hole spacing 50mm

5000x1500x300

5000-1500-800
,
8 Support, M6 screw hole spacing 50mm

6000x1500x300

6000-1500-800
,
8 Support, M6 screw hole spacing 50mm

8000x1500x300

8000-1500-800
,
8 Support, M6 screw hole spacing 50mm



Product details:

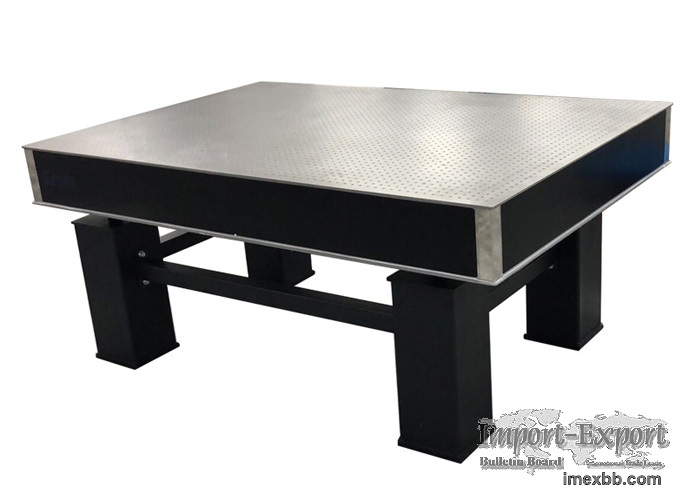

Precision vibration isolation optical platform: PT-01PG



Product Features:

■ Large optical vibration isolation platform, the outer frame is made of high
quality medium carbon steel plate with strong rigidity, small deformation and
good welding performance.

■ The vibration isolation layer can limit the vibration response by using
honeycomb structure materials with low natural frequency and strong vibration
resistance.

■ The panel is made of high permeability stainless steel plate, which is
practical, beautiful and wear-resistant after fine grinding.

■ Vibration isolation bracket adopts composite material, solid damping
vibration isolation, stable and reliable structure, suitable for the
environment vibration of good experimental sites.

■ The adjusting support part adopts wear-resistant screw and flat thrust ball
bearing, easy to use and reliable.

■ Flatness: < 0.05mm/m2.

■ Surface roughness: 0.8μm ~ 1.6μm

■ Natural frequency: 3Hz ~ 6Hz.

■ Amplitude: < 5μm.

■ Repeated positioning accuracy: +0.05mm.



Advantage:
PDV is a company integrating R&D, production and sales. Specializing in the
production of optical plates, optical experimental adjustment stands, precision
manual displacement tables, optical slides and other precision equipment.
Complete specifications, can meet the needs of different users, stable quality,
won the trust of customers.

Minimum Order: 1 pieces

Click to Enlarge
