Professional XLPE Insulated Power Cable High Voltage Cable Insulation Natur

Description:

6/10kv XLPE Insulated cables
CU/XLPE/ PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC type ST2 to IEC 60502, black


Note: Insulation color as per standards or customer requirement

Applications
For laying indoors and outdoors. Able to bear certain traction during
installation, but not external mechanical forces. Laying single core cable
in magnetic ducts is not allowed.

Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 6/10kv
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or
short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature
is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Certificates
CE, RoHS, CCC, KEMA and more others at request

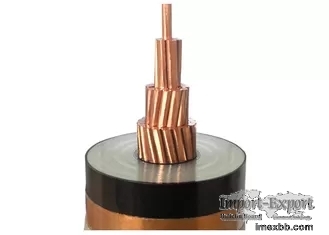

Professional XLPE Insulated Power Cable High Voltage Cable Insulation Natur
Enlarge Click to Enlarge
