Contact: Erica Yu
Company: Xinxiang Lifeierte Filter Corp.,Ltd
Lefilter Building, No. 9 Hongli Road,Muye District,Xinxiang City,Henan Province,China .
Xinxiang City,Henan Province,China . 453000
China
Phone: 0086-13069352523
Fax: 86-373-3339377
E-Mail: Send Inquiry Member for over 1 year
Date/Time:  3/8/23 1:17 GMT


Product Distribution

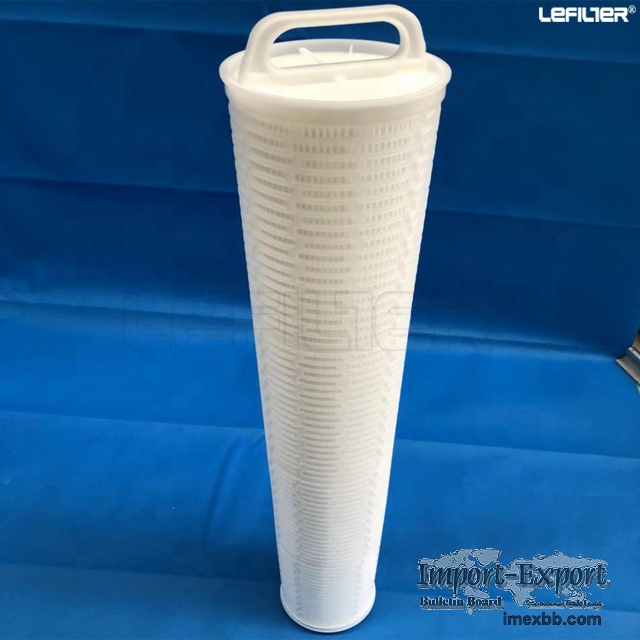

The 3M High Flow Series Filter Elements as a large diameter, radial pleat
design that allows for high flow capability per cartridge, reducing the
number of filters and space required. The filter's absolute rating provides
reproducible effluent quality over the filter's life. Unique construction
creates flow rates of up to 500 gpm in a single cartridge, so fewer elements
are needed.

SPECIFICATIONS
Brand: 3M
Length: 40 in
Diameter: 6.5 in
Material: Polypropylene
Rating: 1 µ
3M Number: HF40PP001A01
Series: High Flow Series
Package : 4pcs/box
HS Code 84219900


3M
Micron 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
, Cartridge Length:  20" (508mm) /40" (1016mm)/60" (1524mm)
Cartridge Max.OD: 6.5"(165mm)/6"(152mm)
Filter Medium: Polypropylene ,  Cellulose , Melt Blown PP
Support: Polypropylene
End Caps:  Glass Fiber Reinforced Polypropylene
O-ring Seal options: EPDM,NBR,Viton
Polypropylene:  3.44bar@82°C,50psi@180°F
Glass Fiber:  3.44bar@121°C,50psi@180°F
Suggestion Flow: 20" 660LPM
40" 1300LPM
60" 1900LPM
Product Distribution
Enlarge Click to Enlarge
