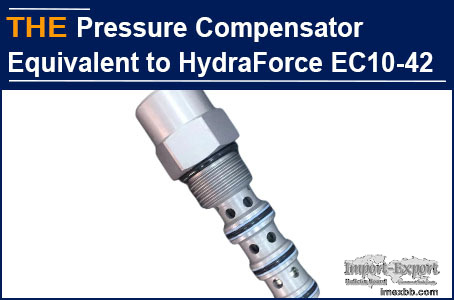

Priority on Demand Pressure Compensator Equivalent to HydraForce EC10-42

This Monday, we launched a Priority on Demand Pressure Compensator with Static
Load Sense equivalent to HydraForce standard part EC10-42.

It is a screw-in, cartridge style, priority on demand pressure compensator
valve with static load sense. Intended to provide priority flow in required
amount, while allowing excessive flow to be used for auxiliary functions.

The features of this cartridge valve:
Priority-on-demand.
Static load sense.
Hardened parts for long life.
Quiet, modulated response.
Industry-common cavity.

A customer in Brazil placed a test order for 10 pcs last June, in 2022. After
12 months of testing, it proves that the function and performance of AAK
hydraulic cartridge valve benchmarked the quality of HydraForce EC10-42. Today,
we received their re-peat order for 500 pcs qty.

AAK Priority on Demand Pressure Compensator 2 advantages:
1. Priority flow rating benchmarking HydraForce
2. Its service life is 2 times that of its peers

Technical parameters of AAK E-EC10-42 Priority on Demand Pressure Compensator:
Pressure Rating: 241 bar (3500 psi)
Priority flow rating:
30.2 lpm (8.0 gpm) With 5.5 bar (80 psi)compensating spring
37.9 lpm (10.0 gpm) With 10.3 bar (150 psi)compensating spring
Cartridge Installation torque: 25ft-lbs (33.9 Nm) Max
Temperature: - 40 to 120 °C (Buna N Std.)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid Viscosity Range: 7.4 to 420 cSt
Cavity: VC10-4

At present, there are very few hydraulic cartridge valve manufacturers in China
who have this model, the newly launched AAK E-EC10-42 Priority on Demand
Pressure Compensator, benchmarking HydraForce EC10-42, has been approved by
customer in Brazil after 1 year of testing. You are welcome to try it out.

AAK HYDRAULIC VALVES (644) 2023-08-07

https://www.aakindustry.com/info , -detail/pressure-compensators-aak644
