Prime Quality 201 304 304L 316 316L 2205 2507 310S Stainless Steel Seamless

According to different production methods can be divided into hot rolled pipe,
cold rolled pipe, cold drawn pipe, extrusion pipe, etc.

1.1. Hot rolled seamless stainless steel pipes are generally produced on
automatic tube rolling units. The solid tube billet is inspected and cleared of
surface defects, cut into the required length, centered on the perforated end
face of the tube billet, and then sent to the heating furnace for heating, and
perforated on the perforating machine. In the perforation at the same time
constantly rotating and advancing, under the action of the roll and the head,
the blank tube gradually formed inside the cavity, called the capillary tube.
It is then sent to the automatic pipe mill for further rolling. Finally, the
wall thickness of the whole machine is adjusted, and the sizing machine is
calibrated to meet the specification requirements. It is an advanced method to
produce hot rolled seamless steel pipe with continuous tube rolling unit.

1.2. If you want to obtain smaller size and better quality seamless pipes, you
must use cold rolling, cold drawing or a combination of both methods. Cold
rolling is usually carried out on a two-high mill, in which steel pipe is
rolled in an annular pass consisting of a circular groove of variable section
and a stationary conical head. Cold drawing is usually carried out in 0.5 ~
100T single chain or double chain cold drawing machine.

1.3. The extrusion method is to place the heated billet in the closed extrusion
cylinder, and the perforating rod and the extrusion rod move together, so that
the extrusion part is extruded from the smaller die hole. This method can
produce small diameter steel pipe.

This kind of steel pipe can be divided into stainless steel seamless steel pipe
and stainless steel welded steel pipe (welded pipe) two categories, according
to the manufacturing process can be different

For: hot rolling, extrusion, cold drawing and cold rolling these basic types,
according to the section shape can be divided into round pipe and shaped pipe,
widely used is the circular steel pipe, but there are also some square,
rectangular, semicircular, hexagonal, equilateral triangle, octagonal shaped
stainless steel pipe.

For the steel pipe under fluid pressure to carry out hydraulic test to check
its pressure capacity and quality, under the specified pressure does not leak,
wet or expansion to qualify, some steel pipe also according to the standard or
demander requirements for flange test, flaring test, flattening test.

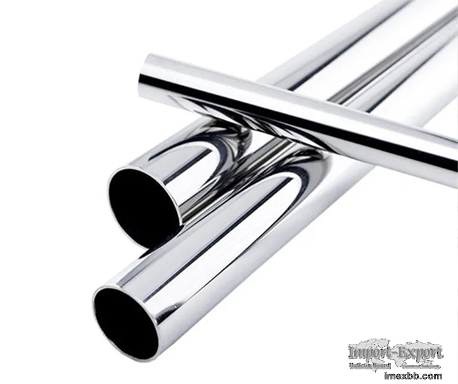

Seamless stainless steel pipe, also known as stainless steel seamless pipe, is
made of steel ingot or solid tube billet perforated into wool tube, and then
made of hot rolling, cold rolling or cold dialing. The specification of
seamless steel pipe is expressed by the outer diameter * the thickness of the
wall in millimeters

Minimum Order: 1 tons
