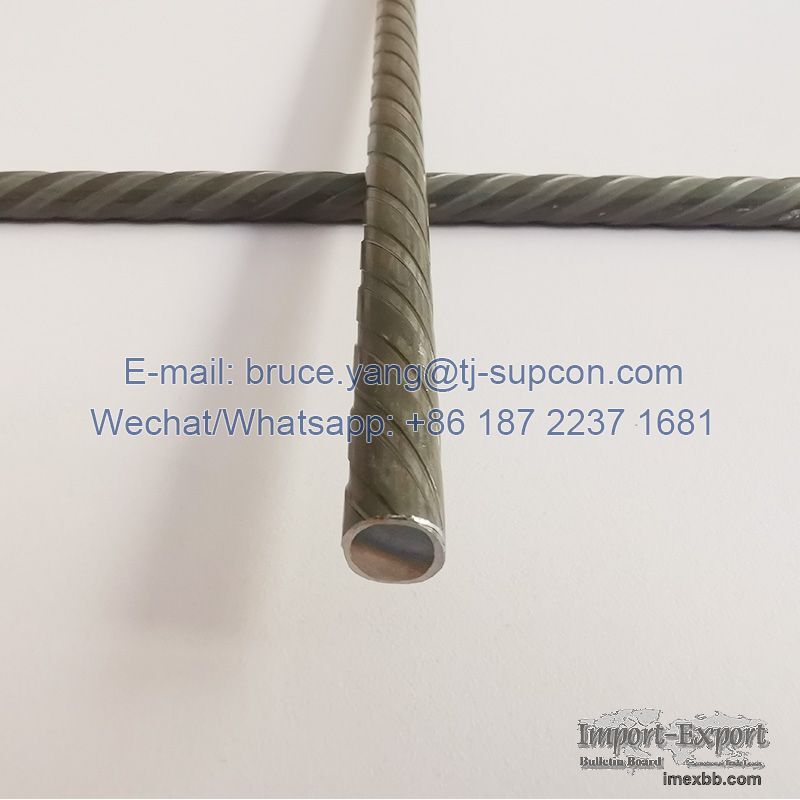

PC Wire (also referred to as Prestressed Concrete Steel Wire) is high tensile,
low relaxation steel wire made from high-carbon steel and widely used for
prestressed and post-tensioning technology in various shapes of PC structures.
Has the following characteristics and advantages:

High tensile strength and low relaxation

More bonding stress between wire and concrete

Stable modulus of elasticity
Product Name PC Wire(Huayongxin Prestressed Concrete Steel Wire)
Type of Surface Spiral Ribbed, Indented, Plain
Materials SWRH82B
Diameter 4.0mm, 4.8mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, 9.0mm
Surface treatment Uncoated prestressed steel wire, prestressed epoxy
coated steel wire and galvanized prestressed steel wire.
Tensile Strength 1470Mpa-1770Mpa
Relaxation (%) ≤2.5
Elongation (%) ≥3.5
Standard ASTM A 421, GB/T5223, BS5896, JISG3536, and required standard.
Packing Volume (about 700-1300kg/ volume). Each roll is bound with steel tape
at 8 places and fully wrapped with rust-proof plastic and PP braided sheet.
PC Wire Application


PC Wire is characterized with high tensile strength and low relaxation. It's
widely used in production of prestressed spun concrete poles, PHC Piles, in
construction of large scale railroad, high-way bridges, building trusses,
overhead crane beams, industrial and civil prefabricated concrete slabs, wall
board, power station, etc.
HUAYONGXIN Advantages




Professional team to manage production and control product quality.

Equipped with advanced test equipment, and comply with the principle of testing
each coil produced.

Rich export experience.

Minimum Order: 25 metric tons
