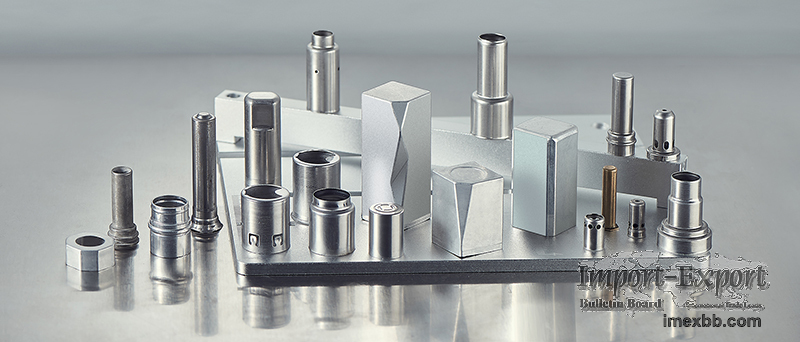

Precision metal deep drawing parts

1. Deep drawing in multi-station transfer mold
Through multi-station transfer mold, we produce deep drawing parts of various
non-ferrous metal materials with uniform wall thickness and bright surface. It
is more suitable for small batch customization because of the convenience for
molds replacement.
2. Deep drawing in high precision progressive die
We use progressive die to finish deep drawing, punching, rotary cutting,
tapping, side punching, necking, flaring, and blanking in one mold.
Processing range:
1.Material thickness≤1.5mm
2.Finished product height≤70mm
3.Finished product diameter ≤50mm
4.The minimum wall thickness of finished product: 0.08mm

Minimum Order: 100000 pieces
