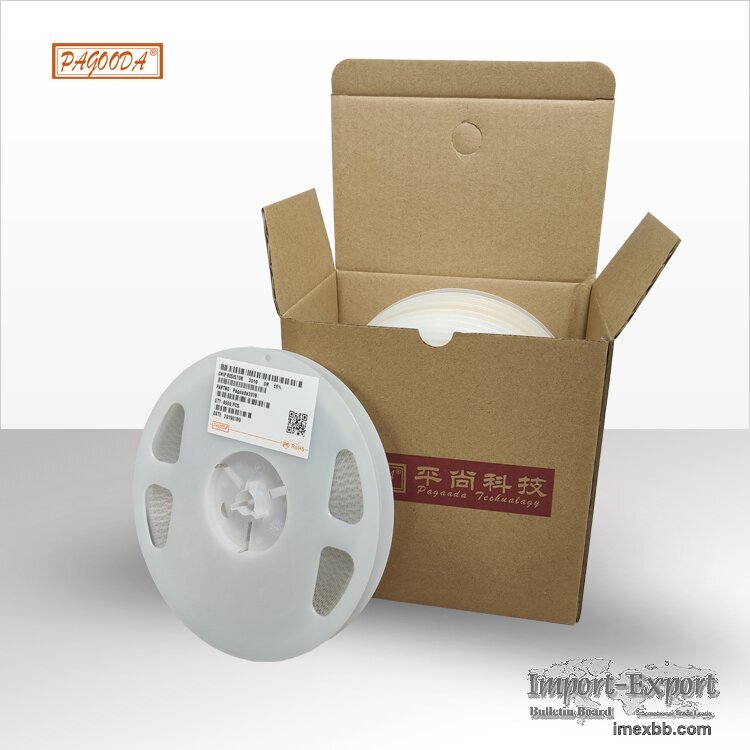

Precision chip resistors

Detailed description of precision chip resistors
Series: 0805
Resistance: 0R—500M 0Ω—22MΩ full range
Power: 1/20W—1W
Deviation: D=±0.5%, B=±0.1%
Features of Precision Chip Resistors
1. The resistance error is ±0.5%, and the temperature coefficient is
±50ppm/℃;
2. Small size and light weight;
3. Adapt to reflow soldering and wave soldering;
4. Stable electrical performance and high reliability;
5. The assembly cost is low, and it matches with automatic placement
equipment;
6. High mechanical strength and superior high frequency characteristics;
7. Comply with the requirements of ROHS directive.
8. Application areas include handheld products, computer products, industrial
and medical instruments, etc.
Pingshang Technology Precision Chip Resistor Product Parameters and Features
Imperial (in) Metric (mm) Resistance Voltage Power Rating
0201 0603 0-47M 25V 1/20W
0402 1005 0-47M 50V 1/16W
0603 1608 0-47M 50V 1/16W, 1/10W
0805 2012 0-47M 150V 1/10W, 1/8W
1206 3216 0-47M 200V 1/8W, 1/4W
1210 3225 0-47M 200V 1/4W, 1/3W
1812 4832 0-47M 200V 1/2W
2010 5025 0-47M 200V 1/2W, 3/4W
2512 6432 0-47M 200V 1W

If you want to know more, you can click the link below:
https://www.electronic7.com/

Minimum Order: 4000 pieces
