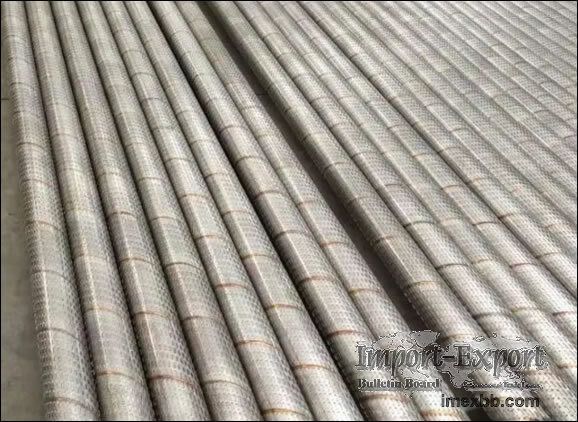

Precise Punched Slot Screen

PPS screen is the primary element for sand control water well screen which
consists of perforated base pipe, stainless steel filtration jacket with
punched slot, and backup ring. The base pipe is of API casing or API tubing
with many drilled holes. The filtration jacket with punched slot is made of
high quality stainless steel, and the spatial slot in high dense array over it
is achieved by digital control precise punching. In the end, the filtration
jacket with punched slot is welded onto the perforated base pipe through backup
ring.

We supply following Precise Punched Slot (PPS) Screens.


Precise Punched Slot (PPS) Screen
6 5/8”, 23- 26 lb/ft, N 80, BTC

Specification:
PPS (Precise Punched Slot) Screen, Stainless Steel 304 screen jacket with
support ring, open size 300um, 65/8”base pipe, N-80, 8.94mm, BTC thread,
Perforation 200 holes/m.
Screen Jacket: Stainless steel 304, 1.5 mm thick.
Slot width 0.30mm, slot Length 10mm, slot density 2 slots in20mm*8mm.
105 Slots in Circle, 6100 slots per meter, uniformly distributed.
