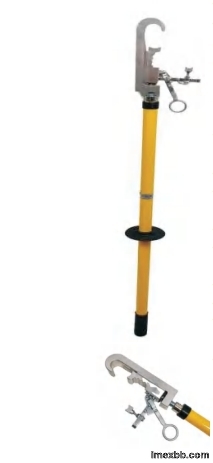

Pre-connecting Insulated Mounting Rod

The wire pre-connecting insulating mounting rod is mainly used to fasten the lead
line on the main lead line when the lead line is connected in live operation, which
reduces the operation risk caused by the sloshing of the lead line and the lead line
when the lead line is fixed in the clamp, easy and fast operation, high
security.
When working, just put the drain wire into the wire clip at the lower part of the
operating head of the mounting rod in advance, tighten the screw to lock the wire,
then hang the installation on the main wire, and then pull the mounting rod down,
the lower part of the operating head of the installation bar will move up to the
main line, and then clockwise screw the installation bar, the top of the drainage
line clamp will lock the main line. After installing the clamp connecting the main
lead to the drain line, the gun operator can be used to loosen the drain line by
twisting the clamp lock ring of the lock drain line on the mounting rod.
Then turn the mounting rod counterclockwise, loosen the locking mechanism of the
mounting rod on the main lead wire, and push the mounting rod upward. The wire clamp
at the lower part of the operating head of the mounting rod will move down, loosen
the clamping on the main lead wire, and withdraw the mounting rod, live wire
connection work completed.
