PP Mist Eliminator

POLYPROPYLENE (PP) WIRE MESH MIST ELIMINATOR DEMISTER PADS
We supply polypropylene (PP) mist eliminator corrugated knitted wire mesh for
making gas liquid filter or demisters.

Benefits of Using Polypropylene (PP) mesh mist eliminator:
PP is a kind of thermoplastics, knitted pp mesh demister is constructed from
multi layer mesh media which functions well at economic cost;
The non-metal mist filter pad provides dense mat through which gas flows and
liquid entrainment is trapped through impingement or coalescence, hence, it can
prevent the mists or droplets from passing downstream, achieving liquid-gas
separation;
PP mesh filter has good resistance to oxidation and corrosion resistance.

Material : Polypropylene ( Simplified as PP)
Shape: Round, Square, Oblong, etc.
Wire Diameter : 0.08 to 0.50mm, while 0.2mm-0.25mm are the most common wire
diameter specifications.
Width : 40mm, 80mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm,
1200mm, 1400mm, etc.
Features: Simple structure, small size, light weight, porosity, pressure drop
contact with large surfacearea, in addition to foam separation efficiency,
light weight,easy maintenance, protection of the environment, reduction of air
pollution and long life.

Application

Polypropylene knitted mesh and PP mist eliminators are mainly used in Boilers,
Evaporators, Gas-liquid, Solid-liquid separation,Vaccum towers,Absorbers, Lube
towers, Elimination of entrainment, Elimination of toxic air pollutants, Used
as gaskets in cable, automobile and computer industry, Desalination plants.



Product Types

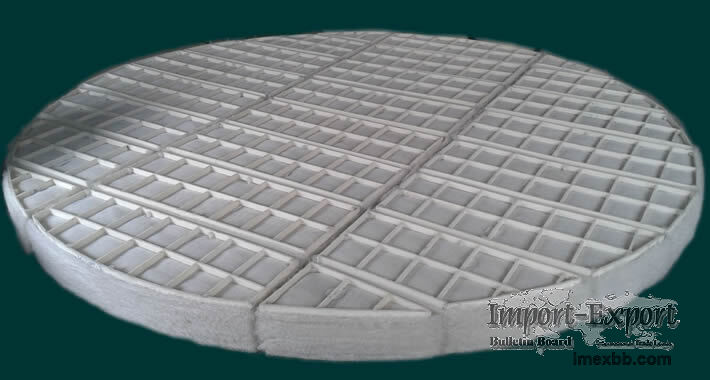

Plastic / PP Mist Eliminator Demister Pad
Material: PP, PE, FRP, TEFLON
Specification:
Demister diameter 2900 mm
Structure: 3 segmented
The mist eliminator operating condition: Gas Volume 56845 M3/hr(CMH), 40-60 C
degree, 100-200 Pa, Fume/mist capture, Wet Scrubber (FGD)
Demister HEIGHT: 300 mm, (150 mm x 2)



Knitted Polypropylene Mesh

Polypropylene / PP knit mesh in 6"” width

PP knitted mesh



Vane Pack Demisters in PP (polypropylene) or FRP (fiberglass reinforced
plastic) for Mist Eliminators
Resistant to steam of NH3 and H2SO4 with Temperature 60 degree C

- For Horizontal Gas Flow type

- Size : 5050mmW(vertical) x 6200mm(horizontal) divided 6 segment.
- Height of Streamline required 380mm
- Distant between vanes : 25mm
- Material : FRP / PP
- Vane without hooks
- Application: Grease Filter / Mist Remover / Pre-Filter
