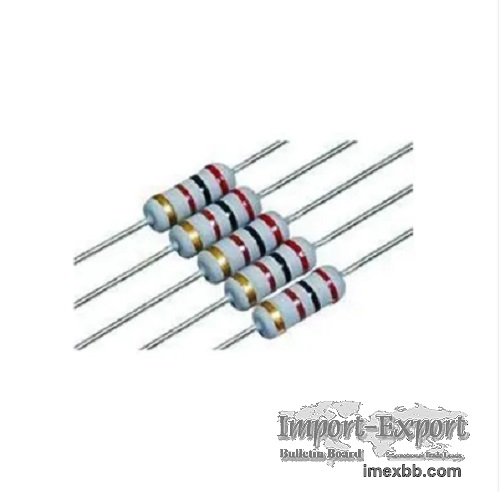

Power Wirewound Resistors

Power Wirewound Resistors
Product Description
A power resistor is a type of resistor designed to handle higher power loads
than standard resistors. They are used in a variety of applications where high-
power dissipation is required, such as in power supplies, amplifiers, and motor
control circuits.
Power resistors come in a range of sizes and power ratings, from a few watts to
several kilowatts. They are typically made of materials with high thermal
conductivity, such as ceramic, aluminum, or silicon, to help dissipate the heat
generated by the resistor.
Rating
Type Dimensions(mm)
TYPE Lmax Dmax d±0.02 L1±3
1W 10.5 3.9 0.6-0.75 25
2W 15 5.5 0.7-0.75 25
3W 17 6.5 0.75 25
5W 24 9 0.75 25
8W 32 9 0.75 25
10W 40 9 0.75 25
12W 48 9 0.75 25
20W 53 9 0.75 25

Click to Enlarge
