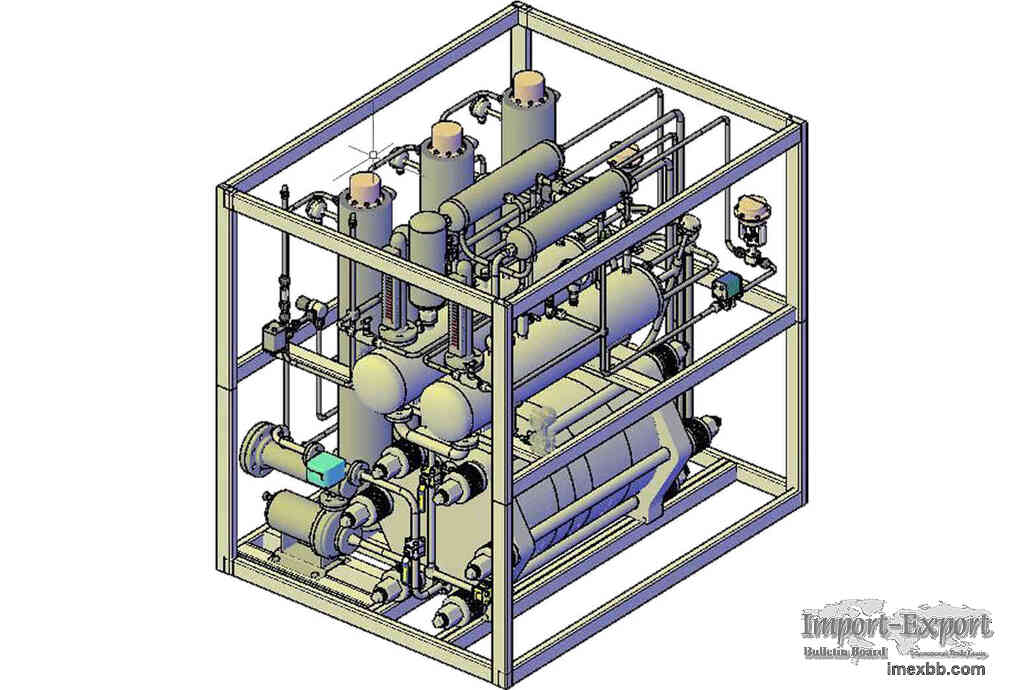

power storage

Looking forward to your inquiry
Sales manager : Leonia Email mailto : sales3@zxdh2.com
Skype/WeChat : 18159889985 Mobile/WhatsApp : +86 18159889985

Technical specifications
P/N ZXD-100 ZXD-125 ZXD-150
Hydrogen Production（m3/h） 120 125 150
Oxygen Production（m3/h） 50 62.5 75
Hydrogen Purity（V/V） ≥99.99% ≥99.99% ≥99.99%
Oxygen Purity（V/V） ≥92.5% ≥92.5% ≥92.5%
Operating load 50%-100% 50%-100% 50%-100%
Working Pressure（MPa） 1.5~2.0 1.5~2.0 1.5~2.0
Hydrogen Moisture Content（g/m3） ≤4 ≤4 ≤4
Hydrogen Alkalinity（mg/m3） ≤1 ≤1 ≤1
Working Temperature（℃） 85±5 85±5 85±5
Cooling water flow（m3/h） 15 21 25
DC power consumption(kW·h/m3H2) ≤4.3 ≤4.3 ≤4.3
External dimension of electrolyzer L×W×H （mm） 2500x1650x1860
2910x1650x1860 3350x1650x1860
Electrolyzer Weight（kg） 14100 15900 17800
Alkali concentration 30% KOH 30% KOH 30% KOH
Circulation quantity of alkali liquor（m3/h） 6.5~8.0 7.5~10 8.5~12
Koh consumption (normal operation)（kg/unit） 980 1110 1270

Product Specification
(2-1000m3/h Water electrolysis Hydrogen equipment/device) Equipment
Composition:Main equipment,
Auxiliary equipment and Electric control equipment.Main equipment
composition: Electrolyser,accessory
equipment integrated Framework Auxiliary equipment composition:Water tank,
alkali tank, make-up water
pump and gas decompression distribution Framework,etc Electronic control
equipment Composition:Rectifier
cabinet,Power Distribution Cabinet,etc Equipment Characteristics: The
equipment design can be customized
according to the users of the power plant.

Technical specifications
H2 rated flow,Unit: Nm3 / h,Specification: Nm3 / h
Operating pressure,Unit: MPa,Specification: 1.50
Business Scope,Unit:%,Specification: 50 ~ 100
H2 purity,Unit:%,Specification: 99.999
Track the O2 content in H2,Unit: parts per million,Specification: less than
2ppm
Dew point of H2,Unit: unit ℃,Specification: better than - 70 ° C

CONTACT US : http://www.zxdh2.com/
Sales manager : Leonia Email mailto : sales3@zxdh2.com
Skype/WeChat : 18030175807 Mobile/WhatsApp : +86 18030175807

Mature Technology
Our products a , re built commercially proven pressurised alka ,
line technology
High Efficiency
One o , f t , he most efficient solutions on the market w ,
ith competitive energy to
hydrogen conv , ersi , on
Modularity
Modular solutions that are suited for rapid scale-
up, clustered

Minimum Order: 1 cubic metres

Click to Enlarge
