Power Station Valve Gost Valve Russian Standard Valve

Power Station Valve Gost Valve Russian Standard Valve gate valve for
russia market Russia Valve Manufacturer

Medium temperature: ≤425 ℃
Operation mode: manual / electric
Medium: water, oil, steam, etc.
Caliber: DN20-100
Pressure: 20.0-32.0mpa
Body material: WCB / WC6 / WC9
Connection method: welding/Flanged
Power plant station valve high pressure forging butt welding globe valve;
rising stem butt welded power station valve also can as your drawing design and
production. It is hot product with high quality. Intimate service +OEM service,
Experienced staffs offer, we supply Professorial service and price.

Product Details

Power Station Valve Type:
Yaosheng --Power Station Valve Manufacturer , we have two common power plant
station valves: electric and manual.
Electric Valve:
Significant improvements in electric control valve actuator technology are
helping power producers reduce costs and increase efficiency. The valve
actuator driven by an electric motor can withstand continuous movement
requirements. In addition, they can work effectively in harsh environments and
provide excellent performance in a wide range of applications.
The benefits of doing so include increased efficiency, reduced maintenance and
improved control valve performance. More importantly, electric actuators do not
need to be recalibrated over time. Once calibrated, the electric control valve
actuator can be operated.
Manual Valve:
Manual valves use hand wheels, handles, levers, and sprocket wheels to
manipulate the valve action by humans. When the valve opening and closing
torque is large, this wheel or worm gear reducer can be set between the
handwheel and the valve stem. If necessary, the universal joint and drive shaft
can also be used for remote operation.

The role of the valve:
Large power plants use hundreds of valves to manage the flow of water and
steam. Valves can be used to stop and start the flow, reduce or increase the
flow, control the flow direction, adjust the flow or process pressure or
release a certain pressure in the pipeline system. Applications include
pollution control, feed water, cooling water, chemical treatment and steam
turbine control systems.

How to choose valves used in power plant?
Industrial valves used in power plants are often subjected to tremendous
pressure and stress. Knowing the correct valve type can ensure better and
optimal power generation applications.
Each type of power generation application requires a unique set of flow control
requirements. In other words, there are countless valves in the piping system
of power plants. Due to the different types of processes that occur in specific
parts of the piping system, industrial valves in power plants also need to play
different roles.

Repair and replace electric control valves:
Valves maintain separation by isolating high-energy processes from low-energy
processes. When valves leak, they directly oppose the force driving the plant
by allowing energy to leave the high-energy process and enter the low-energy
process.
The steam or energy discharged from the process through the leakage valve is
not effectively used, so it may reduce the amount of electricity generated or
the revenue generated proportionally.
At this time, the valve needs to be repaired or even replaced. Yaosheng is
specially designed to provide control valves for challenging operating
conditions in major power plants.

Production of high standard valves:
For power plants, the valve needs to be tightly closed. The valve disc should
be easy to replace, because in most cases the passing mud is corrosive or
abrasive. For the valve body, the most ideal is the iron and stainless steel
stem.

Power Station Valve Main parts and materials
Parts name Material
Valve body WCB(25) WC6 WC9
cap WCB(25) 12CrMo1V
Brake flap WCB 20CrMo1V
Valve stem 1Cr17Ni2 20CrMo1V
Valve seat 25 12CrMo1V
Sealing pair STL+STL STL+STL
filler Flexible graphite
proper temperature -29-425℃ -29-540℃
Applicable medium Water, oil, steam Steam and oil

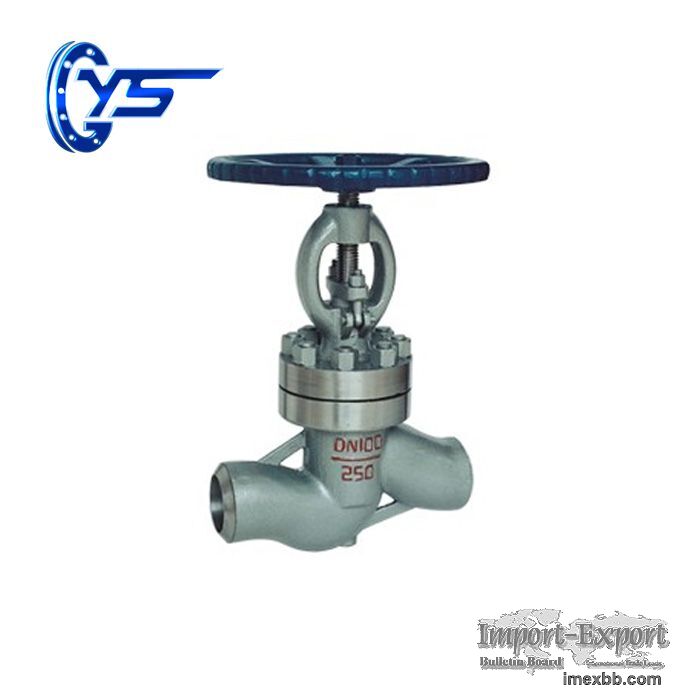

Rising Stem Butt Welded Power Station Globe Valve
Characteristics:
1.Compact structure, reasonable design, good valve rigidity, smooth passage.
2.The use of flexible graphite packing, reliable sealing, light and flexible
operation
Applications:
Power station valve
applications: Petroleum, Chemical, Paper M , aking, Fertilizer, Coal Mining,
water treat , ment and etc.
Product Advantages:
1.We have Sand or Precision casting technology, so we can as your drawing
design and production.
2.Customers' logos are available cast on the valve body.
3. All our casting with tempering procedure before Processing.
4. Use the CNC lathe during whole process.
5. The disc sealing surface use plasma welding machine welding.
6. Every valve must be tested before delivery from the factory, only qualified
ones can be shipped.
7.The kind valve we usually use bags to package, We also can according to
specific customer's requests.

Yaosheng Advantages:
1.We are manufacturer Since 1992.
2.CE, API, ISO approved.
3.Fast delivery.
4.Low price with high quality.
5.Professional work Team!

We also have other valves, such as: GOST Series, JIS Series, DIN Series, BS
Series, ANSI Sries, etc.

Power station valve produced by Yaosheng,understanding the correct valve type
ensures better and optimal power plant generation applications.
