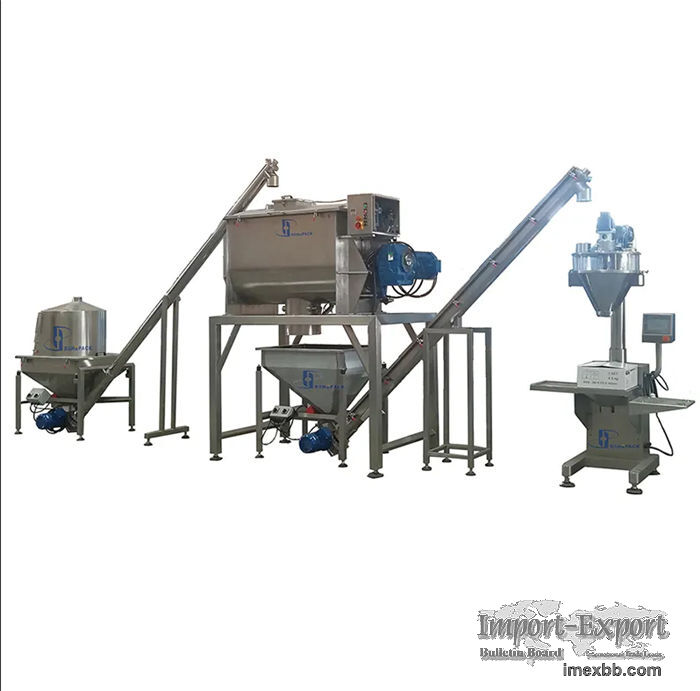

Powder mixing and packing machine line

Dahepack provides a one-stop solution for the mixing, packaging machine system.
The system including the machine below
1.Screw feeder with dust cover
2.Ribbon blender
3.Screw feeder
4.Powder filling machine
Whether your requirements are for a single machine or turnkey process, we have
rich experience to your project.
Model DH-JD-200 DH-JD-300 DH-JD-500 DH-JD-1000 DH-JD-
1500 DH-JD-2000
Effective Volume 200L 300L 500L 1000L 1500L 2000L
Fully Volume 284L 404L 692L 1286L 1835L 2475L
Turning Speed 46rpm 46rpm 46rpm 46rpm 46rpm 46rpm
Total Weight 250kg 350kg 500kg 700kg 1000kg 1300kg
Total Power 4kw 5.5kw 7.5kw 11kw 15kw 22kw
Length（TL） 1370 1550 1773 2394 2715 3080
Width（TW） 834 970 1100 1320 1397 1625
Height（TH） 1647 1655 1855 2187 2313 2453
Length（BL） 888 1044 1219 1500 1800 2000
Width（BW） 554 614 754 900 970 1068
Height（BH） 637 697 835 1050 1155 1274
Radius(R) 277 307 377 450 485 534
Power Supply 3P AC208-415V 50/60Hz

Click to Enlarge
