Pot Magnets With Bore

Leyuan Group Co., Ltd. is an experienced magnetic products manufacturer. We
focus on the production of magnetic product related to permanent magnets.

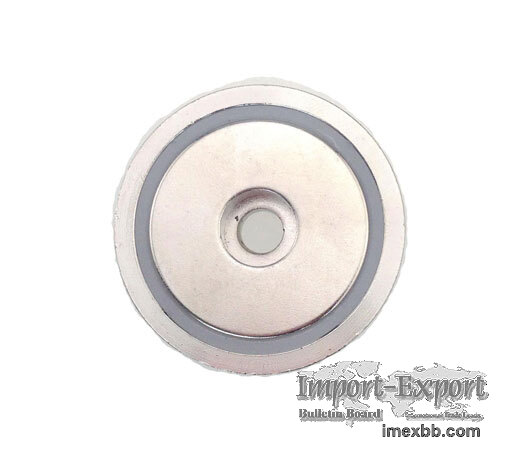

These neodymium magnets with countersunk holes/neodymium disc countersunk hole
magnets have only one surface that has strong magnetism; the other surface of
the strong magnets with hole just has very weak magnetism.

Leyuan round countersunk magnets have excellent holding forces thanks to the
use of anisotropic neodymium (NdFeB) magnets. The maximum working temperature
of these types is up to 80°C, and the steel body is galvanized. These types
are used in applications where high holding forces and small dimensions are
required.

Application: magnet source round base magnet can be inserted into different
instruments, machines, and tools. These countersunk rare earth magnets can be
used effectively as auxiliary instruments during transport, clamping, mounting,
lifting, welding, separation, etc. The best holding force is reached at full
contact of the magnetic face with the ground ferromagnetic surface. Force is
vertical to the base (air gap = 0 mm). Small cracks on the neodymium round base
magnet or steel pot do not have any influence as to the functionality,
lifetime, and holding force of the pot magnet.

The Specification of Countersunk Pot Magnets With Bore

Counterbore Stamp
Pot magnet (NdFeB), with counter bore, Nickel coating, body stamping machining.
Model D D1 D2 H Weight (g) Pull force (Kgf)
103-16 16 3.5 6.5 5.2 7 6
103-20 20 4.5 8.6 7.2 15 9
103-25 25 5.5 10.6 7.7 24 19
103-32 32 5.5 10.6 7.8 39 32
103-36 36 6.5 12 7.6 50 41
103-40 40 6.5 12 7.8 69 52
103-42 42 6.5 12 8.8 77 61
103-48 48 8.5 19 10.8 120 75
103-60 60 8.5 19 15 243 115
103-75 75 10.5 21 17.8 480 163
103-16L 16 3.5 6.5 5.2 7 5
103-20L 20 4.5 8.6 6 13 8
103-25L 25 5.5 10.6 6.9 23 17
103-32L 32 5.5 10.6 6.8 38 30
103-36L 36 6.5 12 6.9 50 39
103-42L 42 6.5 12 7.9 78 58
103-48L 48 8.5 19 9.6 113 72
103-60L 60 8.5 19 15 265 115
103-75L 75 10.5 21 17.8 537 163
103-16P 16 3.5 6.5 5.2 7 8
103-20P 20 4.5 8.6 7.2 15 11
103-25P 25 5.5 10.6 7.7 24 24
103-32P 32 5.5 10.6 7.8 39 40
103-36P 36 6.5 12 7.6 50 51
103-40P 40 6.5 12 7.8 69 65
103-42P 42 6.5 12 8.8 77 76
103-48P 48 8.5 19 10.8 120 94
103-60P 60 8.5 19 15 243 144
103-75P 75 10.5 21 17.8 480 204

Counterbore Lathe
Pot magnet (NdFeB), with counter bore, Nickel coating, body lathe machining.
Model D D1 D2 H Weight (g) Pull force (Kgf)
104-10 10 3.5 6.5 5 3 1
104-12 12 3.5 6.5 5 4 1.5
104-14 14 3.5 6.5 4.5 5 4
104-16 16 3.5 6.5 5.2 7 6
104-18 18 4.5 8.6 6 10 8
104-20 20 4.5 8.6 7.2 15 9
104-22 22 4.5 8.6 6.9 18 15
104-25 25 5.5 10.6 7.7 24 19
104-28 28 5.5 10.6 6.4 28 25
104-30 30 5.5 10.6 6.4 32 29
104-32 32 5.5 10.6 7.8 39 32
104-34 34 5.5 10.6 7.3 45 35
104-36 36 6.5 12 7.6 50 41
104-38 38 6.5 12 7.4 60 47
104-40 40 6.5 12 7.8 69 52
104-42 42 6.5 12 8.8 77 61
104-45 45 6.5 12 8.7 90 70
104-48 48 8.5 19 10.8 120 75
104-50 50 8.5 19 10.7 136 89
104-55 55 8.5 19 12 192 102
104-60 60 8.5 19 15 243 115
104-65 65 8.5 19 14.9 338 130
104-70 70 10.5 21 16.9 440 148
104-75 75 10.5 21 17.8 480 163
104-80 80 10.5 21 19 655 250
104-90 90 10.5 21 18 822 340
104-100 100 12.5 25 18 1030 380
104-110 110 12.5 25 18 1226 420
104-120 120 12.5 25 18 1420 480

Straight Hole Stamp
Pot magnet (NdFeB), with bore, Nickel coating, body stamping machining.
Model D D1 D2 H Weight (g) Pull force (Kgf)
105-16 16 3.5 6.5 5.2 7 5
105-20 20 4.5 8 7.2 13 8
105-25 25 5.5 9 7.7 22 17
105-32 32 5.5 9 7.8 38 30
105-36 36 6.5 11 7.6 48 40
105-40 40 6.5 11 7.8 69 50
105-42 42 6.5 11 8.8 75 65
105-48 48 8.5 15 10.8 114 72
105-60 60 8.5 15 15 235 110
105-75 75 10.5 18 17.8 460 155
105-16L 16 3.5 6.5 5.2 7 4
105-20L 20 4.5 8 6 12 7
105-25L 25 5.5 9 6.9 23 16
105-32L 32 5.5 9 6.8 38 28
105-36L 36 6.5 11 6.9 50 38
105-42L 42 6.5 11 7.9 76 62
105-48L 48 8.5 15 9.6 111 69
105-60L 60 8.5 15 15 260 110
105-75L 75 10.5 18 17.8 524 155
105-16P 16 3.5 6.5 5.2 7 6
105-20P 20 4.5 8 7.2 13 10
105-25P 25 5.5 9 7.7 22 21
105-32P 32 5.5 9 7.8 38 38
105-36P 36 6.5 11 7.6 48 50
105-40P 40 6.5 11 7.8 69 63
105-42P 42 6.5 11 8.8 75 81
105-48P 48 8.5 15 10.8 114 90
105-60P 60 8.5 15 15 235 150
105-75P 75 10.5 18 17.8 460 213

Straight Hole Lathe
Pot magnet (NdFeB), with bore, Nickel coating, body lathe machining.
Model D D1 D2 H Weight (g) Pull force (Kgf)
106-10 10 3.5 6.5 5 2 1
106-12 12 3.5 6.5 5 4 1.5
106-14 14 3.5 6.5 4.5 5 3
106-16 16 3.5 6.5 5.2 7 5
106-18 18 4.5 8 6 10 6
106-20 20 4.5 8 7.2 13 8
106-22 22 4.5 8 6.9 17 16
106-25 25 5.5 9 7.7 22 18
106-28 28 5.5 9 6.4 27 23
106-30 30 5.5 9 6.4 32 27
106-32 32 5.5 9 7.8 38 30
106-34 34 5.5 9 7.3 44 33
106-36 36 6.5 11 7.6 48 40
106-38 38 6.5 11 7.4 59 44
106-40 40 6.5 11 7.8 69 50
106-42 42 6.5 11 8.8 75 65
106-45 45 6.5 11 8.7 89 69
106-48 48 8.5 15 10.8 114 72
106-50 50 8.5 15 10.7 134 81
106-55 55 8.5 15 12 189 93
106-60 60 8.5 15 15 235 110
106-65 65 8.5 15 14.9 333 122
106-70 70 10.5 18 16.9 429 138
106-75 75 10.5 18 17.8 460 155
106-80 80 10.5 18 19 641 250
106-90 90 10.5 23 18 799 340
106-100 100 12.5 25 18 1016 380
106-110 110 12.5 25 18 1212 420
106-120 120 12.5 25 18 1380 480

The Advantages of Pot Magnets With Bore
Pot magnets can be inserted into different instruments, machines, tools. Can be
used as auxiliary instruments during transport, clamping, mounting, lifting,
welding, separation, etc. The best holding force is reached at full contact of
the magnetic face with the ground ferromagnetic surface, force is vertical to
the base (air gap = 0 mm). Small cracks on the magnet or steel pot do not have
any influence to the functionality, lifetime and holding force of the pot
magnet.
