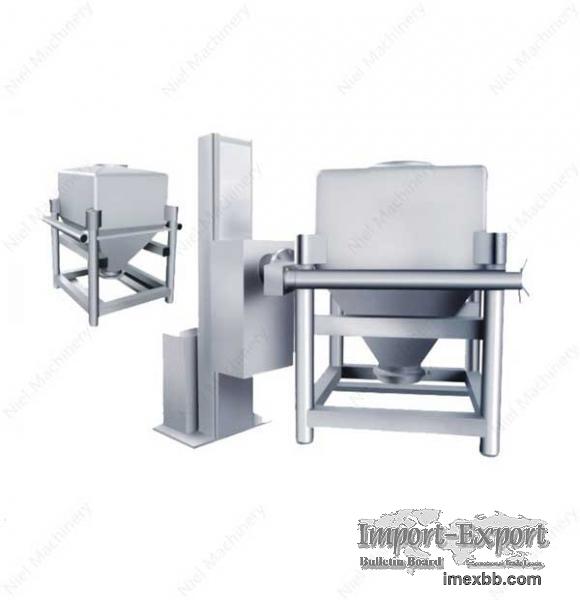

Post Lifting Bin Mixer

The post lifting bin mixer can automatically complete the functions of lifting,
mixing and lowering, and is ideal mixing equipment for the solid preparation of
the pharmaceutical industry.

This model can be fully automated and only needs to input relevant data on the
control screen to mix materials.

Product Description of Post Lifting Bin Mixer
Post lifting bin mixer has functions such as automatic lifting, mixing and
lowering. With a hopper mixer and a variety of mixing hoppers of different
specifications, it can meet the mixing requirements of multiple varieties and
different batches and is the ideal equipment for the total mixing of
pharmaceutical companies. At the same time, it is widely used in the
pharmaceutical, chemical, food and other industries.

The bin blender machine is a new type of machine that our company has
extensively absorbed and digested foreign advanced technology and successfully
developed in combination with national conditions. When the mixing is
completed, the hopper can continue to be raised to the process height and is
convenient for discharging.

The materials can pass through different process segments in the same
container, and do not need to be frequently transferred, fed, etc. Effectively
control dust and cross-contamination, reduce material loss, control material
stratification, optimize the production process, and fully comply with GMP
requirements for pharmaceutical production.

Structural Characteristics of Post Lifting Bin Mixer
The Post lifting bin mixer is composed of a column, machine base, rotation
crotch, driving system braking system, control system, etc. Push the mixing
hopper into the rotation crotch and lock the nuts. Start the control system to
lift the hopper to the mixing height and position it reliably. The driving
system will carry out automatic mixing according to the set time, rotation
speed and other data. After the mixing operation, the rotation crotch will stop
vertically, the hopper will be printed. Loosen the locknuts of the rotary
crotch and push the hopper out and transfer it to the next procedure.

Application of Post Lifting Bin Mixer
Milk powder

Foodstuff

Medicinal

Ch , icken powder

Cosmetic Pigment

Other industries

Main Features of Post Lifting Bin Mixer
(1) The blender bin machine has such features as reasonable structure, stable
performance, convenient

the operation, no dead corners, and no exposed bolts

(2) The gyrator (mixing hopper) forms an included angle of 30 with the rotation
axis. The materials in the mixing hopper rotate along with the gyrator and make
tangential movement and achieving the best mixing effect

(3) PLC automatic control is adopted, it is provided with the infrared safety
device and the discharging butterfly valve with the misoperation preventer to
ensure safe production

Technical Data of Post Lifting Bin Mixer
Technical Data
Model No. Effective vol Turning Speed Total Power Length(mm)
Total Weight
NDJ-200L 100L 3-20RPM 2.2KW 2300*1500*2000 600KG
NDJ-300L 300L 3-20RPM 3KW 2500*1900*2000 1000KG
NDJ-500L 600L 3-15RPM 4.4KW 2800*2300*2500 1500KG
NDJ-1000L 800L 3-15RPM 6.2KW 3000*2600*2500 1800KG
NDJ-1500L 1000L 3-10RPM 6.2KW 3250*2750*2800 2000KG
NDJ-2000L 1500L 3-10RPM 6.2KW 3300*2800*2800 2200KG
Power supply 3P AC208-415V 50/60HZ



Shanghai Niel Machinery Manufacturing Co., Ltd. is a professional manufacturer
of bulk powder transfer systems, we provide high efficiency cyclone powder dust
collector, powder handling cabinet, large paddle mixer, used paddle mixer and
etc. Want to know more? Please contact us.

Minimum Order: 1 sets
